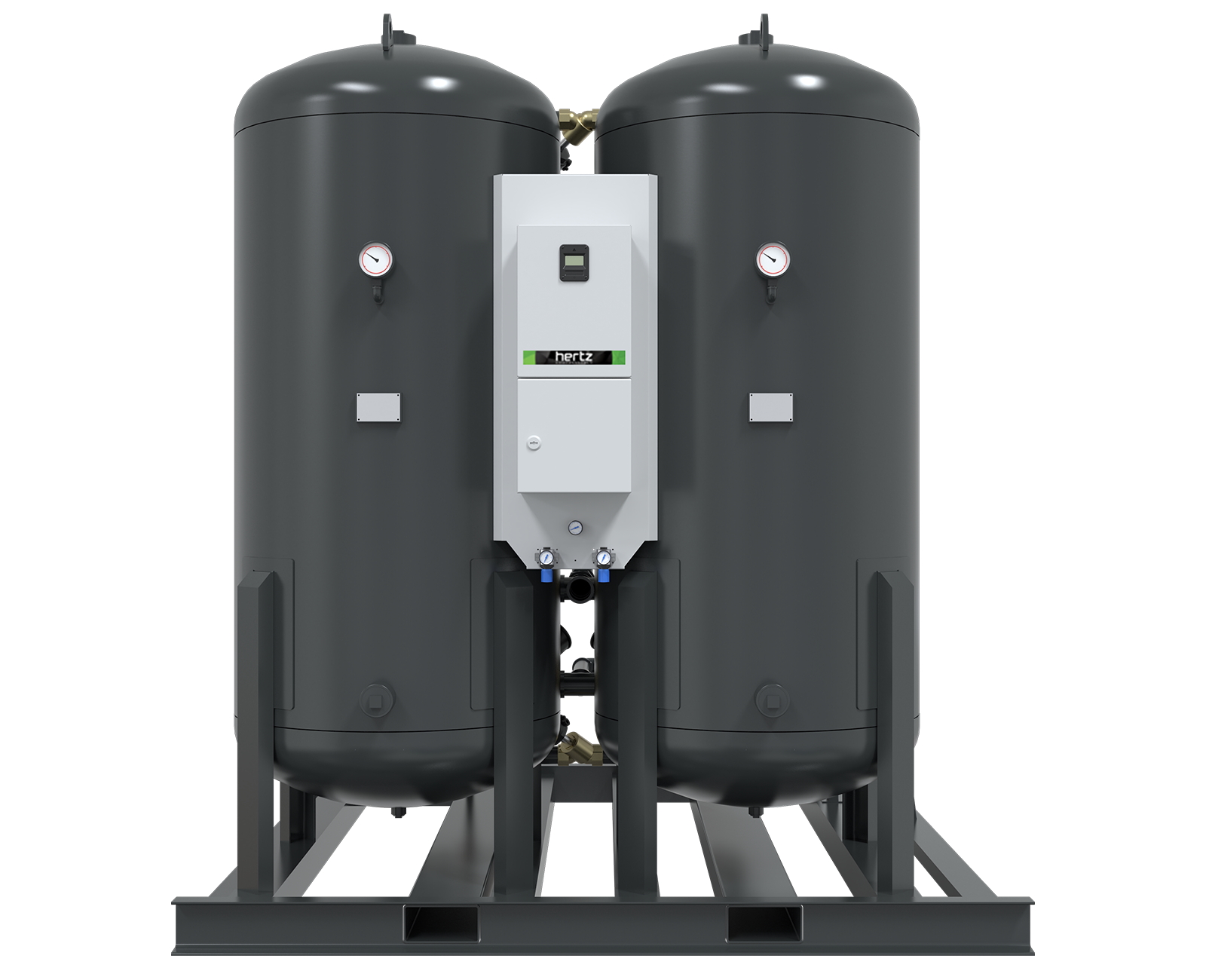

    HOX Oxygen Generators

    HO2 Oxygen Generators
    HOX Oxygen Generators
    hox-oxygen-generators

     Advantages

    • On-demand oxygen production at 90–95% purity with high capacity

    • Quick start-up capability

    • Quiet operation with extremely low outlet noise levels

    • Long service life thanks to special zeolite granules

    • Low maintenance cost



    Hertz Kompressoren Oxygen Generators utilize Pressure Swing Adsorption (PSA) technology to separate nitrogen, water vapor, and hydrocarbons from ambient air using advanced zeolite molecular sieves, delivering oxygen with high purity.

    In the dual-bed system, one bed captures unwanted gases while the other undergoes regeneration, enabling uninterrupted and continuous oxygen production. The produced oxygen is stored in dedicated buffer tanks and supplied to the user with up to 95% purity, ensuring reliability and consistency. Thanks to specially engineered high-performance zeolite granules, the system offers both efficient operation and a durable oxygen generation solution.

    Standard

    • Oxygen Tanks • Silencer • Mini PLC • Pressure Transmitter • Particle Filter* • Tank Manometers • ECO Mode • Valve Control Regulator • Piston Valves

    *Replace filter elements periodically, and get normal service for the compressor.

    Optional

    • Carbolescer • Touch Screen PLC • Oil Indicator • Flowmeter • Dew Point Sensor • Oxygen Analyzer

     Oxygen Production Steps with PSA Technology

    • Pressurization: By compressing air into the tank, the desired oxygen pressure is achieved.

    • Adsorption: Zeolite molecular sieves allow oxygen to pass through under high pressure while retaining nitrogen and other gases.

    • Regeneration: By reducing the tank pressure, the saturated zeolite molecules are released and made ready for reuse.

    • Pressure Equalization: After the regeneration cycle, the valve is opened to equalize the pressure between the two tanks, minimizing energy loss.


    TECHNICAL  SPECIFICATIONS

    Model Air Demand @ Following Purity Level Free Oxygen Delivery @ Following Purity Level
    90% 93% 95% 90% 93% 95%
    m³/h cfm m³/h cfm m³/h cfm m³/h cfm m³/h cfm m³/h cfm
    HOX-25 2,79 1,64 2,73 1,61 2,76 1,62 0,25 0,15 0,23 0,14 0,21 0,12
    HOX-40 4,66 2,74 4,54 2,67 4,61 2,71 0,42 0,47 0,38 0,22 0,35 0,21
    HOX-70 8,38 4,93 8,18 4,82 8,29 4,88 0,76 0,45 0,68 0,4 0,64 0,38
    HOX-120 14,29 8,41 13,94 8,21 14,13 8,32 1,30 0,77 1,16 0,68 1,09 0,64
    HOX-140 17,15 10,1 16,73 9,85 16,95 9,98 1,56 0,92 1,39 0,82 1,3 0,77
    HOX-175 21,44 12,62 20,91 12,31 21,19 12,47 1,95 1,15 1,74 1,02 1,63 0,96
    HOX-240 28,58 16,81 27,88 16,4 28,26 16,62 2,6 1,53 2,32 1,36 2,17 1,28
    HOX-380 46,1 27,13 44,97 26,45 45,57 26,83 4,19 2,46 3,75 2,21 3,51 2,07
    HOX-530 64,2 37,78 62,63 36,87 63,47 37,37 5,84 3,44 5,22 3,07 4,88 2,87
    HOX-660 80,67 47,46 78,69 46,3 79,75 46,95 7,33 4,32 6,56 3,86 6,13 3,61
    HOX-800 98,78 58,13 96,36 56,69 97,65 57,45 8,98 5,29 8,03 4,73 7,51 4,42
    HOX-970 118,5 69,7 115,6 68,1 117,2 69 10,8 6,34 9,64 5,67 9,01 5,3
    HOX-1210 148,2 87,3 144,5 85,1 146,5 86,2 13,5 7,93 12,04 7,09 11,27 6,63
    HOX-1900 233 137 227,3 133,7 230,3 135,6 21,18 12,46 18,94 11,15 17,72 10,43
    HOX-2310 283,3 166,6 276,3 162,7 280,0 164,8 25,75 15,16 23,03 13,56 21,54 12,68
    HOX-2850 346,2 203,8 337,8 198,8 342,3 201,5 31,48 18,52 28,15 16,57 26,33 15,49
    HOX-3810 468,1 275,6 456,7 268,9 462,8 272,3 42,56 25,04 38,06 22,4 35,6 20,95
    HOX-4440 545,9 321,2 532,6 313,3 539,7 317,7 49,63 29,22 44,38 26,11 41,52 24,45
    HOX-5350 654,4 385,4 638,4 375,7 647 380,9 59,5 35,03 53,2 31,31 49,77 29,28
    HOX-6570 807,2 475,1 787,5 463,3 798,1 469,7 73,38 43,23 65,62 38,62 61,39 36,14
    HOX-7700 946 556,8 922,9 543,2 935,3 550,4 86 50,62 76,91 45,28 71,95 42,34
    HOX-9050 1109 652,7 1082 636,9 1097 645,4 100,8 59,3 90,19 53,07 84,37 49,66
    HOX-13200 1621 953,9 1581 930,9 1603 942,7 147,3 86,8 131,8 77,5 123,3 72,5
    HOX-15700 1928 1135 1881 1107 1906 1122 175,3 103,2 156,8 92,2 146,7 86,4
    HOX-17700 2166 1275 2113 1244 2141 1260 196,9 115,9 176,1 103,6 164,7 97
    HOX-21600 2646 1558 2581 1518 2616 1540 240,5 141,5 215,1 126,6 201,2 118,4
