HGON Compressed Airline Filters

UP Ultra Particulate Compressed Airline Filters [NEW]

Get A Quote Contact Download Share

Advantages

• Air flow from 35 m3/h to 5400 m3/h

• NPT/BSP pipe sizes range from ¼” to 4” inclusive

• Pore-free aluminium construction

• Options:

• “Standard Drain” with a ½” connector or

• “Drain-free” with a ½” connector and adaptor.

• Neatly designed connection clips and wall apparatus

• ISO 8573-compliant production

• Zero clearance

• Anodised

• Locking System Indicator

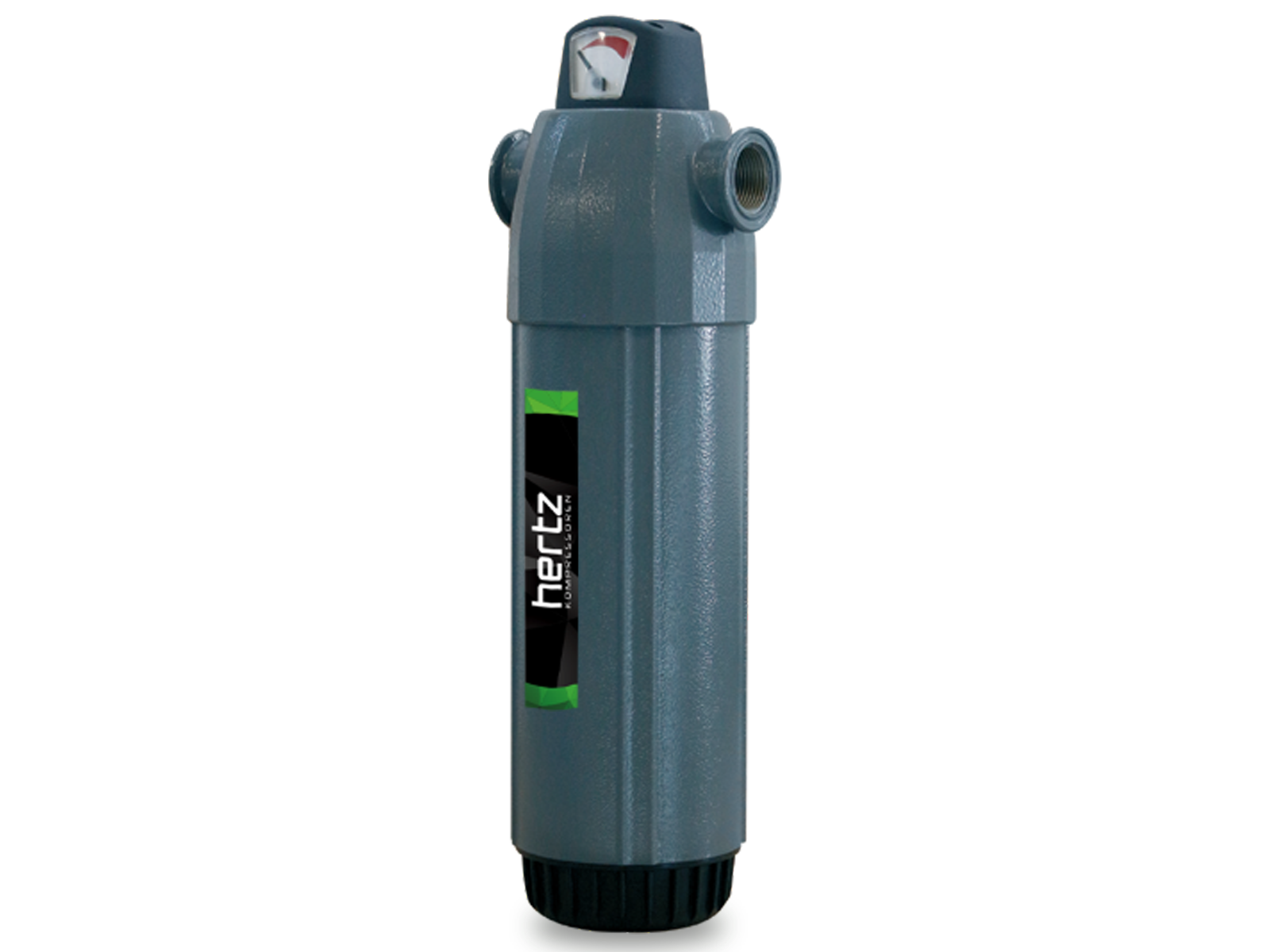

Hertz’s HGON Series of Industrial Air Filters offer its compressed air users high-efficiency filtration with low pressure losses.

Having more port sizes, it delivers a reliable performance, minimising air contamination in compressed air systems. The innovative “Zero Clearance” design allows users to assemble and replace the filter and other components in any compressed air unit easily. Constructed of aluminium, the HGON series is built to last, meets PED and ISO 8573 standards, and is extremely economical.

TECHNICAL SPECIFICATIONS

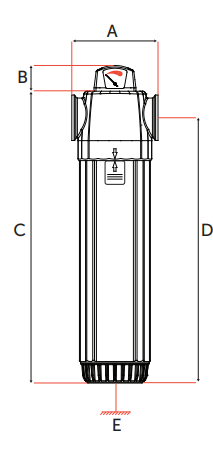

Model	Connection Size	Flow Rate		Max. Working Pressure (bar)	Element Model	Dimensions (mm)
Model	Connection Size	m³/min	cfm	Max. Working Pressure (bar)	Element Model	A	B	C	D	E
HGON-35	G 1/4"	0,58	20	20	Included	90	36,5	214	192	19
HGON-55	G 3/8"	0,91	32	20	Included	90	36,5	251,5	230	19
HGON-70	G 1/4"	1,17	41	20	Included	128	45	273	249,5	32
HGON-100	G 1/2"	1,67	59	20	Included	128	45	302,5	279	32
HGON-125	G 3/4"	2,08	73	20	Included	128	45	343	319,5	32
HGON-150	G 3/4"	2,5	88	20	Included	140	45	369	334,5	31
HGON-225	G 1"	3,75	132	20	Included	140	45	398	364,5	31
HGON-300	G 1"	5	177	20	Included	140	45	474	432	31
HGON-400	G 1 1/2"	6,67	235	20	Included	140	45	564	522	31
HGON-500	G 1 1/2"	8,33	295	20	Included	151	45	511	464,5	25
HGON-600	G 2"	10	353	20	Included	151	45	626	579,5	25
HGON-800	G 2"	13,33	471	20	Included	151	45	696	649,5	25
HGON-1000	G 2 1/2"	16,67	588	20	Included	151	45	851	804,5	25
HGON-1200	G 2 1/2"	20	706	20	Included	151	45	976	929,5	25
HGON-1550*	G 3"	25,83	912	20	Included	240	45	707	659,5	25
HGON-2000*	G 3"	33,33	1177	20	Included	240	45	862	814,5	25
HGON-2700*	G 3"	45	1589	20	Included	240	45	987	939,5	25
HGO 3400*	DN 100	57	2013	16	Included	360	45	871	810	30
HGO 4500*	DN 100	75	2649	16	Included	360	45	926	865	30
HGO 5400*	DN 100	90	3178	16	Included	360	45	1070	1009	30
