Advantages

Durable and compact

Safe and efficient operation

High performance

Strong and reliable design

Excellent high-pressure applications

Product performance warranty

Carbon steel filters designed for 350 bar (optional)

Sufficient wall thickness

High-pressure tested

Anodised interior and exterior surfaces

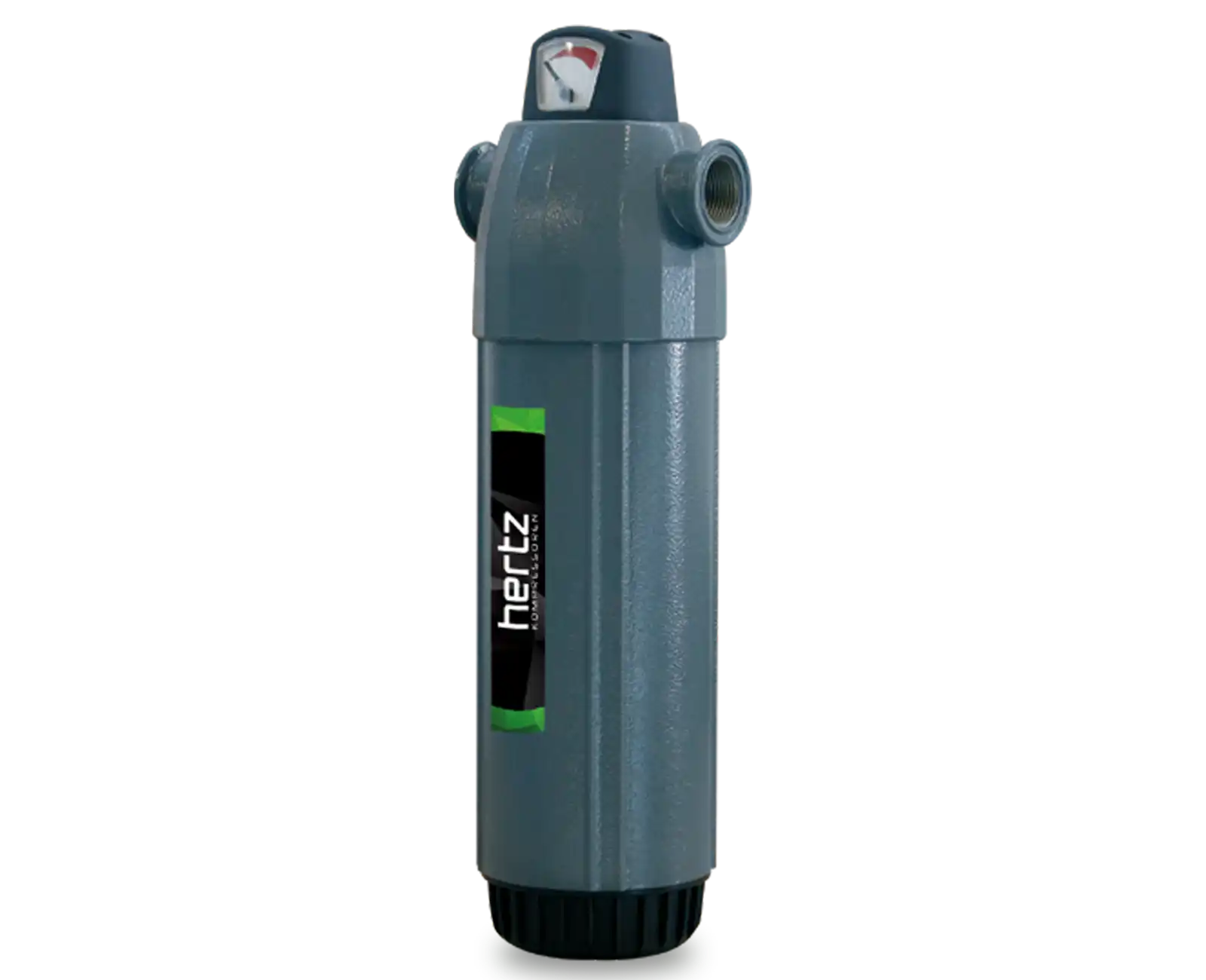

This model filters are produced in a weldless structure to withstand high pressures.

High-pressure test guarantee safe and efficient operation.

TECHNICAL  SPECIFICATIONS

Model
Max. Pressure Capacity Connection
Size
Element
Model
Dimensions (mm)
bar psi m³/min cfm A B C D
HHGO 100 50 725 1,70 59 G ¼” M25 113,4 115,4 25,75 155
HHGO 300 50 725 5,00 177 G ½” M50 113,4 115,4 25,75 158,5
HHGO 600 50 725 10,00 353 G ¾” M100 109,4 115,4 32,25 207
HHGO 850 50 725 14,20 500 G 1” M150 133 138 37,35 250
HHGO 1200 50 725 20,00 706 G 1” M200 133 138 37,35 314
HHGO 1600 50 725 26,70 942 G 1 ½” M250 128 138 44,4 368
HHGO 2500 50 725 41,70 1471 G 2” M2500 145 158 51,5 393
HHGO 3000 50 725 50,00 1766 G 2 ½” M3000 160 178 57,6 386
