    H SERIES

    H SERIES
    HPC SERIES
    HPC BOOSTER SERIES
    HPC BOOSTER GP SERIES
    WAVE SERIES
    HPC-H SERIES


     1,5-11 kW   7-12,5 bar  145-1766 l/min


    Oil Injected, Single & Double Stage, Belt Driven

    Reciprocating Air Compressors

    Reliable, Long-Lasting, and Durable: Preferred by Many Industries for its Versatility

     Advantages

    • Offers ideal solutions for small business enterprises.

    • Service-friendly design reduces maintenance costs.

    • Produces reliable and efficient pressure.

    • Uses quality components for a long service life.

    • Low noise levels.


      General Features

    • Reliable design

    • Safe to use

    • High-quality components and safety systems

    • Energy efficient

    h-series

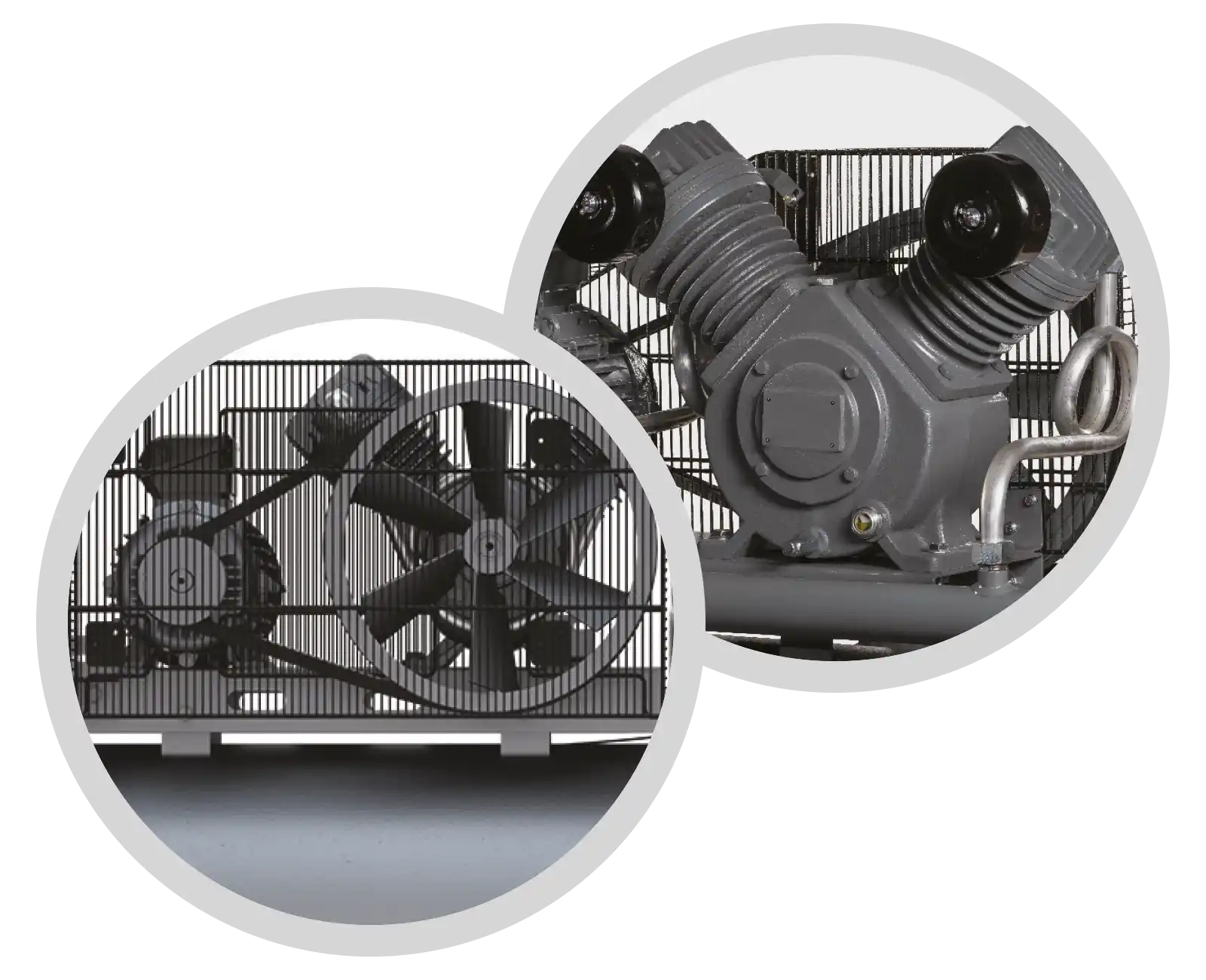

     Compressor Block

    • Cast cylinder body

    • Aluminium injection-moulded cylinder head

    • Special aluminium alloy pistons and connecting rod

    • Cast pulley for fan-type efficient cooling

    • Splash lubrication

    • Oil level gauge

    • Factory-filled oil

    • Star/delta connectors (5.5 kW and above)

    • External panel (optional)


     Safety System

    • Efficient electric motor

    • Safe operation with pressure switch, check valve and safety valve

    • Belt-pulley guard

    • Manometer

    • Ready-to-run electrical mechanism

    h-series

     1,5-11 kW   7-12,5 bar  145-1766 l/min

    TECHNICAL  SPECIFICATIONS

    Model Pressure Capacity* Motor Power Voltage Connection Size Dimensions (mm) Weight Receiver Volume
    bar psi L/min cfm kW/HP V  Length Width Height kg L
    Single Stage

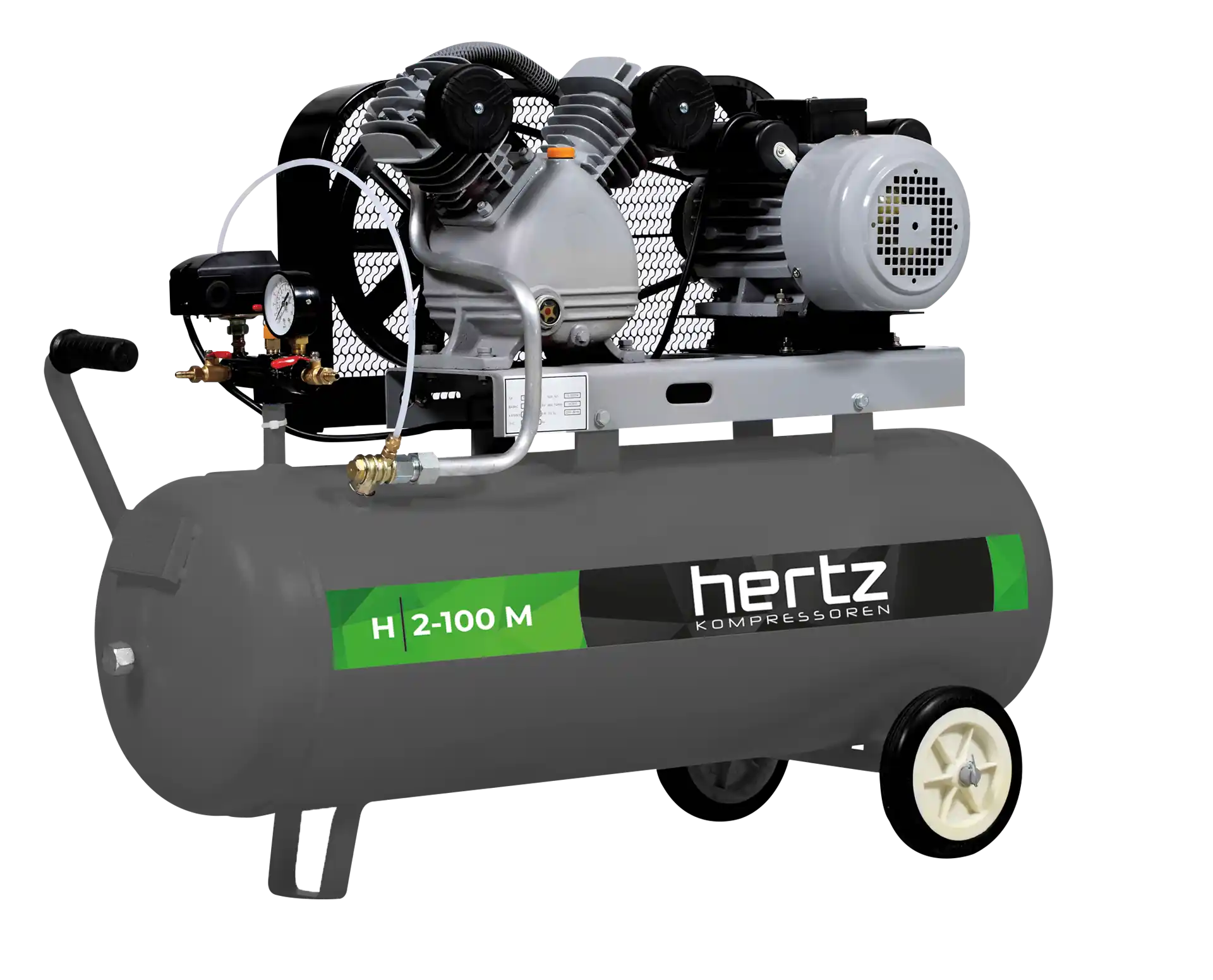

    H 2-100 M 7 100 190 6,7 1,5 / 2 220 3/4” 450 1100 820 81 100
    H 3-200 M 7 100 310 10,9 2,2 / 3 220 3/4” 450 1445 965 120 200
    H 4-300 7 100 510 18 3 / 4 380 / 400 3/4” 450 1745 1000 147 250
    H 5,5-300 7 100 649 22,9 4 / 5,5 380 / 400 3/4” 450 1745 1030 180 250
    H 5,5-500 7 100 649 22,9 4 / 5,5 380 / 400 3/4” 640 1915 1260 264 500
    H 7,5-500 7 100 980 34,6 5,5 / 7,5 380 / 400 3/4” 640 1915 1350 283 500
    H 10-500 7 100 1100 38,8 7,5 / 10 380 / 400 3/4” 640 1915 1370 297 500
    H 15-500 7 100 1790 63,2 11 / 15 380 / 400 3/4” 700 1840 1520 465 500
    Double Stage
    H 3-200 MT 12,5 180 150 5,3 2,2 / 3 220 1/2” 450 1445 965 132 200
    H 4-300 T 12,5 180 325 11,5 3 / 4 380 / 400 1/2” 450 1755 1000 167 250
    H 5,5-300 T 12,5 180 325 11,5 4 / 5,5 380 / 400 3/4” 450 1755 1030 198 250
    H 5,5-500 T 12,5 180 325 11,5 4 / 5,5 380 / 400 3/4” 640 1910 1255 330 500
    H 7,5-500 T 12,5 180 650 23 5,5 / 7,5 380 / 400 3/4” 640 1910 1275 350 500
    H 10-500 T 12,5 180 750 26,5 7,5 / 10 380 / 400 3/4” 700 1910 1355 365 500

    - Hertz Kompressoren reserves its rights to make changes in its products and specifications without prior notice.
