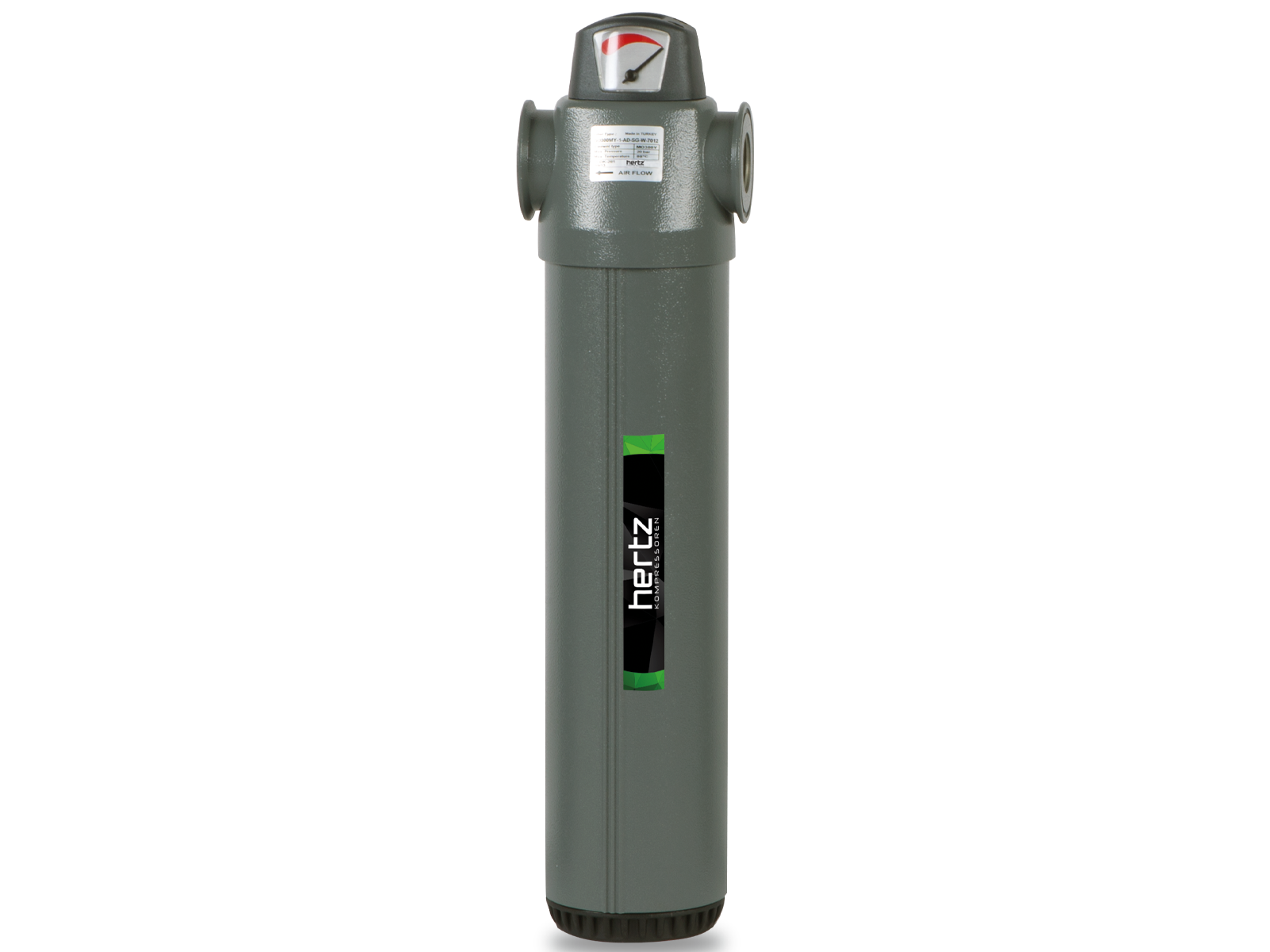

    HG MSS Compressed Air Sterile Filters

    HF Flanged Compressed Air Filters
    HHGO High Pressure Airline Filters
    HG WS Water Separators
    HF WS Flanged Water Separators
    HGON Compressed Airline Filters
    HG MSS Compressed Air Sterile Filters
    HELM-C Carbolescer


    hg-mss-compressed-air-sterile-filters

     Advantages

    • Specially designed for medical compressed air plants

    • Partical removal down to 0.01 micron

    • Suitable for steam sterilisation in an autoclave

    TECHNICAL  SPECIFICATIONS

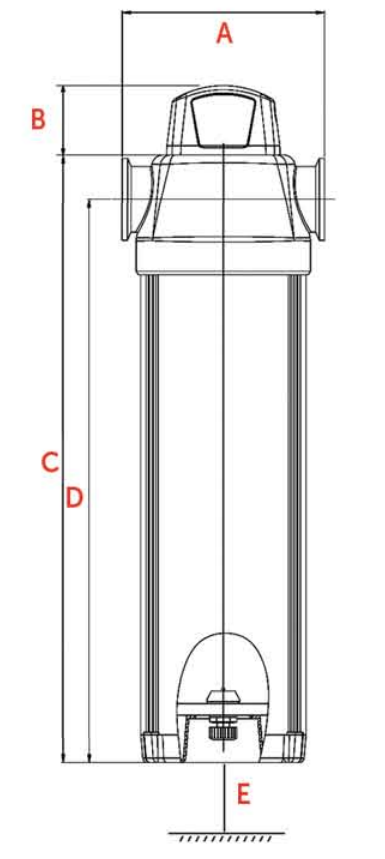

    Model Max. Pressure Capacity Connection Dimensions (mm)
    bar psi m³/min cfm A B C D E
    HG 20 MSS  16 232 0,33 12 G 1/4” 72 19 193 100 22
    HG 25 MSS 16 232 0,42 15 G 1/4” 72 19 193 100 22
    HG 40 MSS 16 232 0,67 24 G 3/8” 96 20 237 110 22
    HG 50 MSS 16 232 0,83 29 G 3/8” 96 20 237 110 22
    HG 100 MSS 16 232 1,67 59 G 1/2” 96 20 237 150 22
    HG 150 MSS 16 232 2,5 88 G 3/4” 117 34 375 190 56
    HG 200 MSS 16 232 3,33 118 G 3/4” 117 34 375 250 56
    HG 250 MSS 16 232 4,17 147 G 1” 117 34 465 300 56
    HG 300 MSS 16 232 5 177 G1 1/4” 117 34 465 350 56
    HG 500 MSS 16 232 8,33 294 G1 1/4” 117 34 530 380 56
    HG 600 MSS 16 232 10 353 G1 1/2” 117 34 530 425 56
    HG 851 MSS 16 232 14,2 501 G 2” 170 64 722 480 56
    HG 1210 MSS 16 232 20,2 713 G 2” 170 64 722 550 56
    HG 1520 MSS 16 232 25,3 893 G2 1/2” 235 72 760 430 56
    HG 1820 MSS 16 232 30,3 1070 G 3” 235 72 760 550 56
    HG 2220 MSS 16 232 37 1307 G 3” 235 72 760 600 56
