Advantages

Simple design to replacement to internal element

Two external float drains for excellent drainage

CE and ASME tank options

Low pressure drop

Durable epoxy powder coating and rust-preventing anodised interior surface coating

Strong welds

Long service life



They filter unwanted substances in the compressed air before they go to the system.

TECHNICAL  SPECIFICATIONS

Model Capacity Connection Size Drain Port Size Maximum
working
Pressure
Element Model Number of
Elements

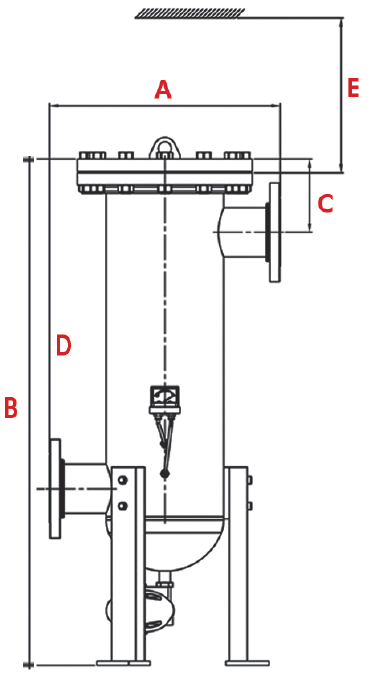

Dimensions (mm)
m³/min cfm bar A B C D E
HF 3600 60 2119 DN100 G ½” 14 M1200 3 450 1317 277 767 650
HF 4800 80 2825 DN100 G ½” 14 M1200 4 530 1344 279 769 650
HF 7200 120 4238 DN150 G ½” 14 M1200 6 580 1425 331 769 650
HF 9600 160 5650 DN150 G ½” 14 M1200 8 650 1439 333 798 650
HF 12000 200 7063 DN200 G ½” 14 M1200 10 750 1504 345 825 650
HF 16800 280 9888 DN200 G ½” 14 M1200 14 800 1545 383 833 650
HF 19200 320 11301 DN250 G ½” 14 M1200 16 850 1583 417 862 650
HF 20400 340 12007 DN300 G ½” 14 M1200 17 850 1680 447 887 650
HF 27600 460 16245 DN350 G ½” 14 M1200 23 850 1778 487 917 650
HF 33600 560 19776 DN350 G ½” 14 M1200 28 850 1778 487 917 650
