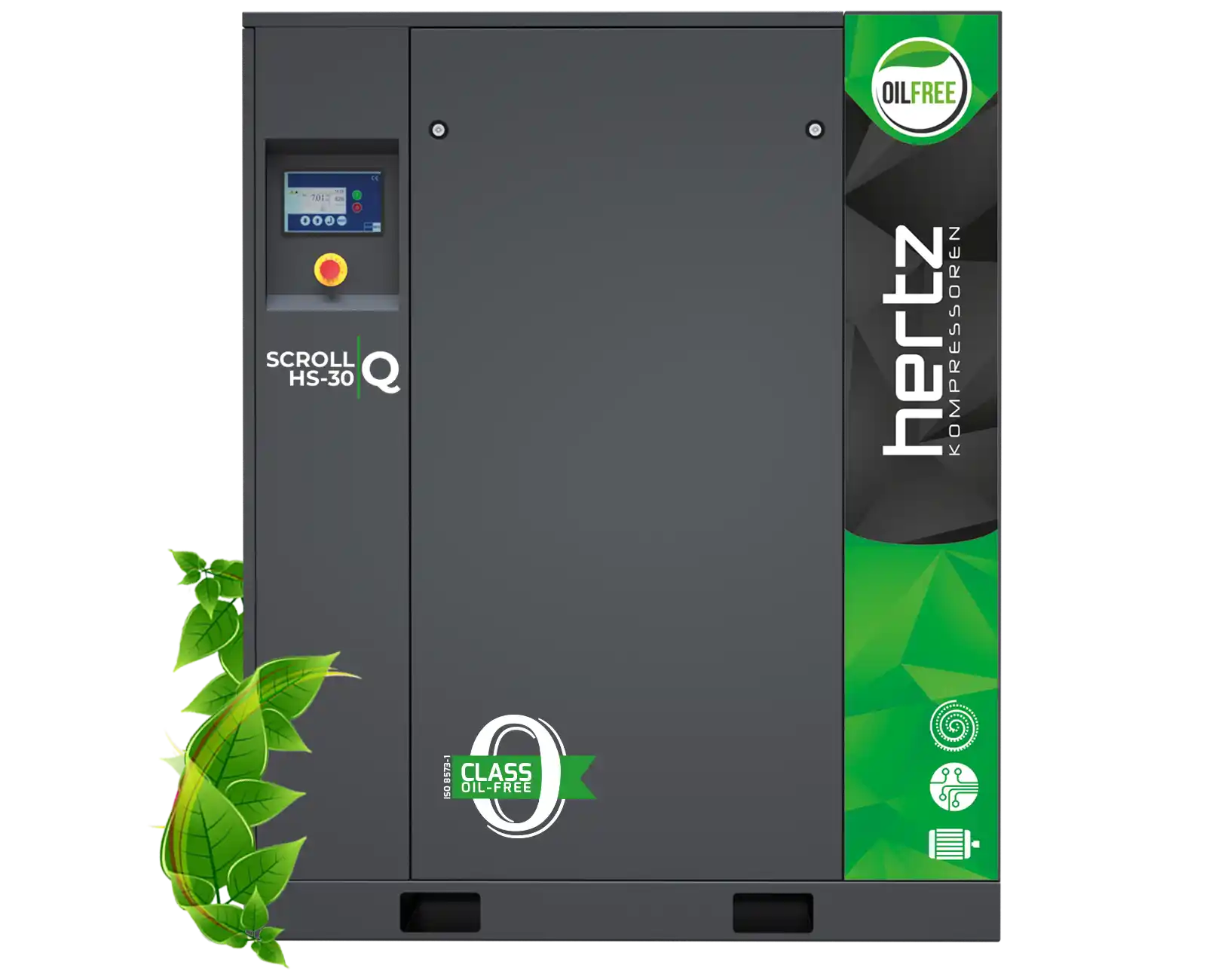

1,5-30 kW   8-10 bar  0,16-3,4 m³/min


Oil-Free, Belt Driven

Scroll Air Compressors

Your solution partner specially designed to meet 100% of the air needs in the food and beverage, chemical, pharma, and healthcare industries where oil-free air quality is essential.

 Advantages

Low noise level thanks to low-vibration operation.

User-friendly, robust and long-lasting microprocessor control device with communication features based on the product smooth operation and interruption-free production.

Component placement specifically designed to reduce downtimes during maintenance process.


 General Features

Compact design

Soundproofed canopy

Internal air cooler(s), water separator, and stainless pipes

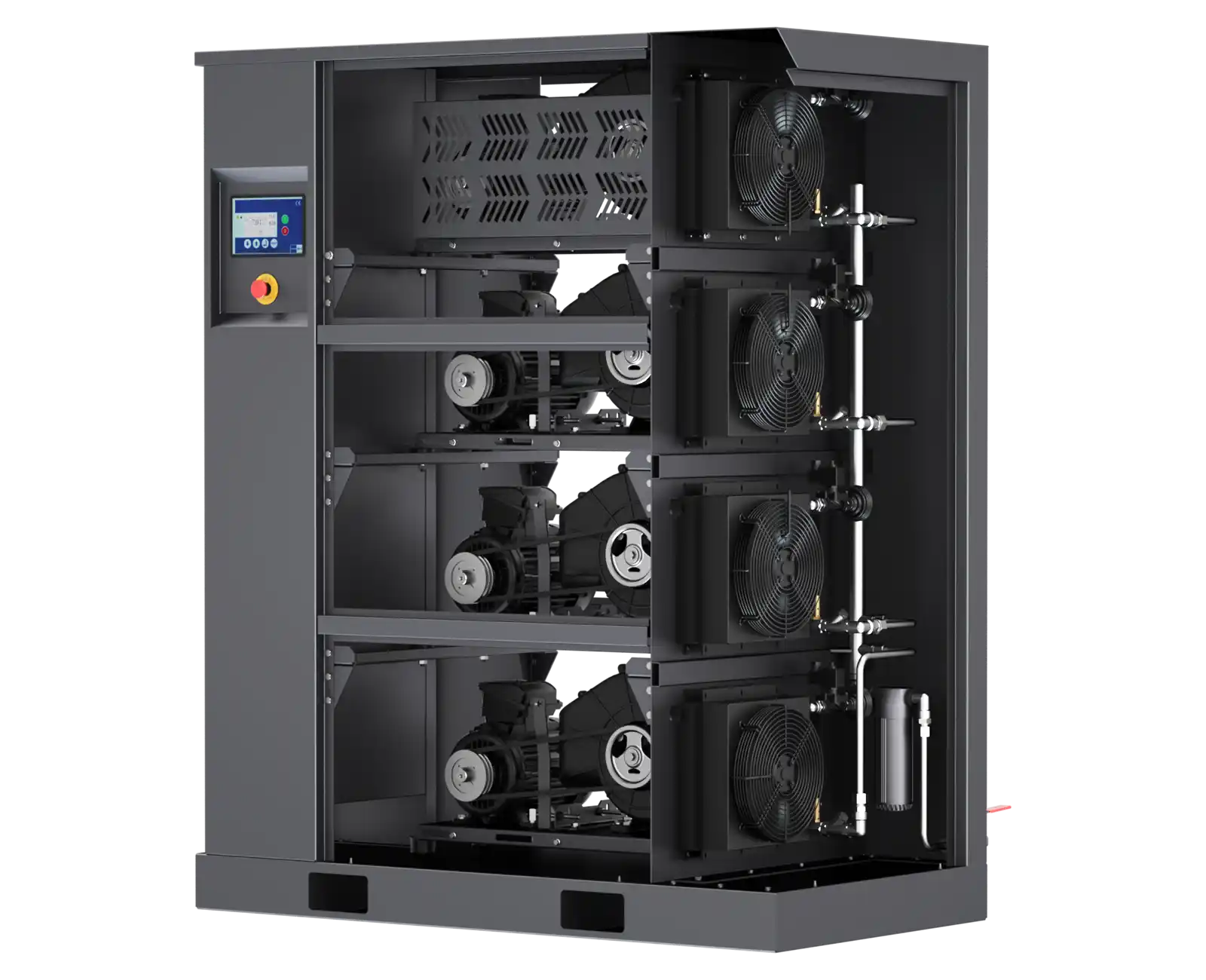

Robust and durable single unit or stacked design

 Main Motor and Drive System

IE3 efficiency-class electric motors

Belt-pulley drive system

Easy belt tensioning system


 Compressor Block

Effective and oil-free scroll design

Integrated cooling fan on the scroll unit for effective cooling

Star/delta connection (3,7 kW and above)

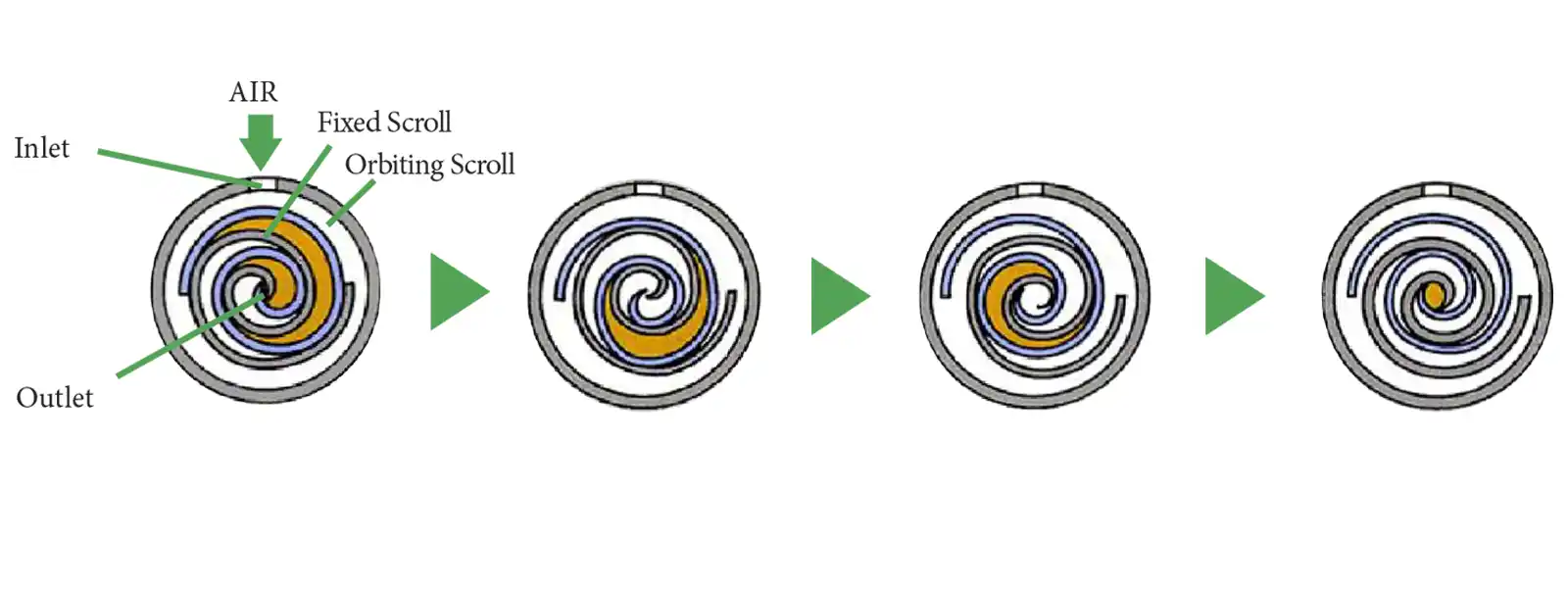

 Scroll Type Compression Principle

Orbital and fixed spiral elements align to create compression chambers.

The continuous movement of the orbital spiral compresses air from the atmosphere producing oil-free and pollutant-free air.


 100% Oil-Free Compressed Air

 It is designed in accordance with sensitive and accurate production conditions.

It protects the environment and saves energy.

 It is produced in accordance with all global standards and regulations.

It prevents damage to your products and the contamination of your production lines.

Therefore, it eliminates unnecessary machine downtime.

 It guarantees the high quality compressed air you need.

 Controller

Without the need for an external main controller, ability to co-aged work synchronized with Master/Slave for up to two compressors

Internal ModBus communication

User-friendly on-screen interface

Alarm log records last 20 alarms


For double stage and above

Weekly scheduler for starting/stopping the machine at 3 different time intervals can be individually set for each day of the week

Maintenance warnings and log records

Equal ageing through scroll units

Automatic start/stop of units according to air demand

 1,5-30 kW   8-10 bar  0,16-3,4 m³/min

TECHNICAL  SPECIFICATIONS


Model Pressure Capacity* Motor Connection Dimensions (mm)
[Anchura x Longitud x Altura]
Weight
(kg)
bar psi m³/min cfm kW/hp Base
Mounted
Tank
Mounted
Tank +
Dryer
Base
Mounted
Tank
Mounted
Tank +
Dryer
SINGULAR HS1.5-S 8 115 0,16 5,65 1,5 / 2 G 1/2" 750 x 731 x 900 1773 x 823 x 1381 1818 x 823 x 1381 195 329 372
HS2.2-S 8 115 0,24 8,48 2,2 / 3 G 1/2" 750 x 731 x 900 1773 x 823 x 1381 1818 x 823 x 1381 200 334 377
10 145 0,2 7,06

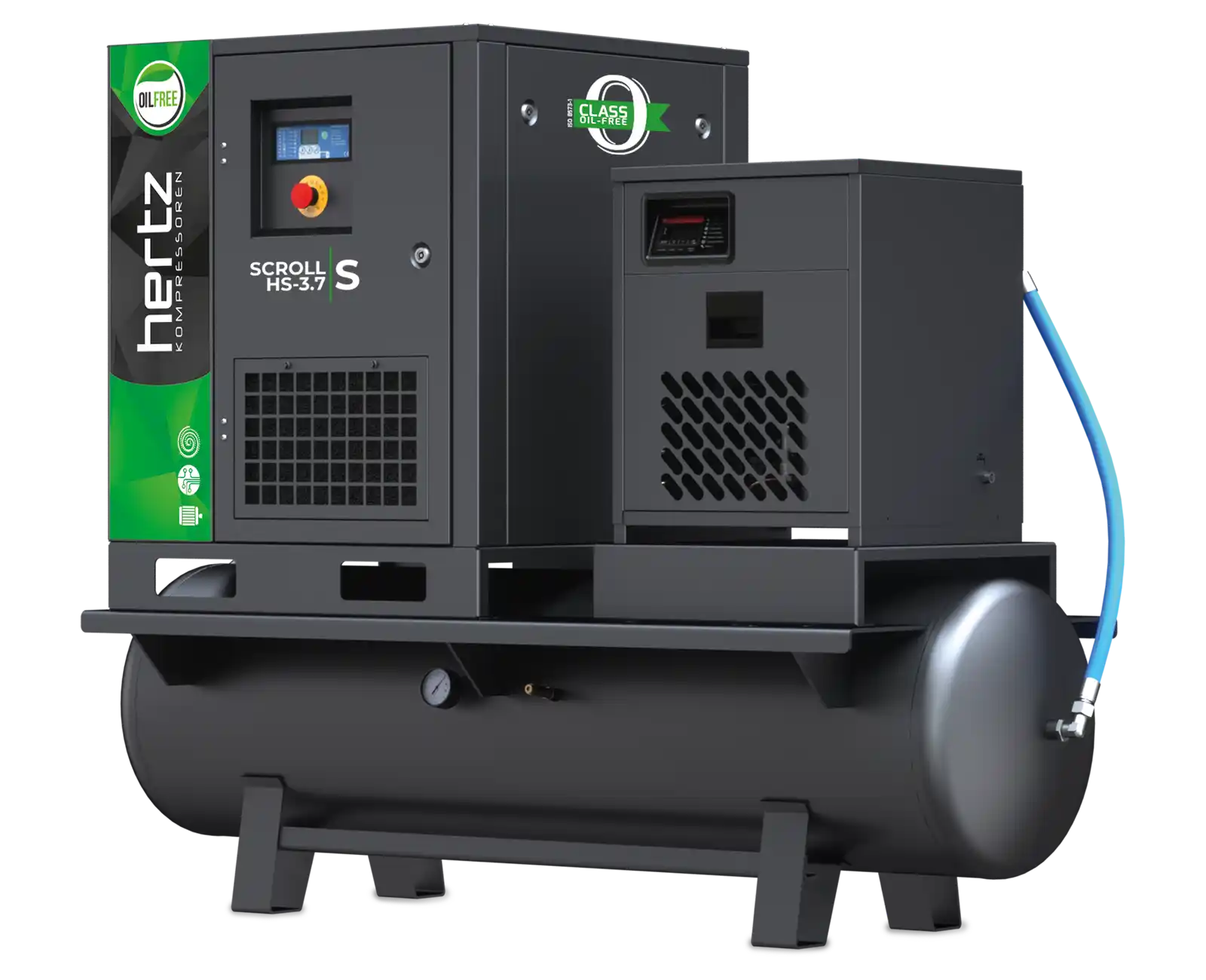

HS3.7-S 8 115 0,4 14,13 3,7(4) /5 G 1/2" 750 x 731 x 900 1773 x 823 x 1381 1818 x 823 x 1381 220 354 397
10 145 0,34 12,01
HS5.5-S 8 115 0,6 21,19 5,5 / 7 G 1/2" 750 x 731 x 900 1773 x 823 x 1381 1818 x 823 x 1381 230 364 407
10 145 0,47 16,6
HS7.5-S 8 115 0,85 30,01 7,5 / 10 G 1/2" 750 x 731 x 900 1773 x 823 x 1381 1818 x 823 x 1428 235 369 431
10 145 0,68 24,01
DOBLE HS7,5-D 8 115 0,8 28,25 7,5(2 x 4) / 10 G 3/4" 1500 x 821 x 1050 1972 x 926 x 1725 - 405 590 -
10 145 0,68 24,01

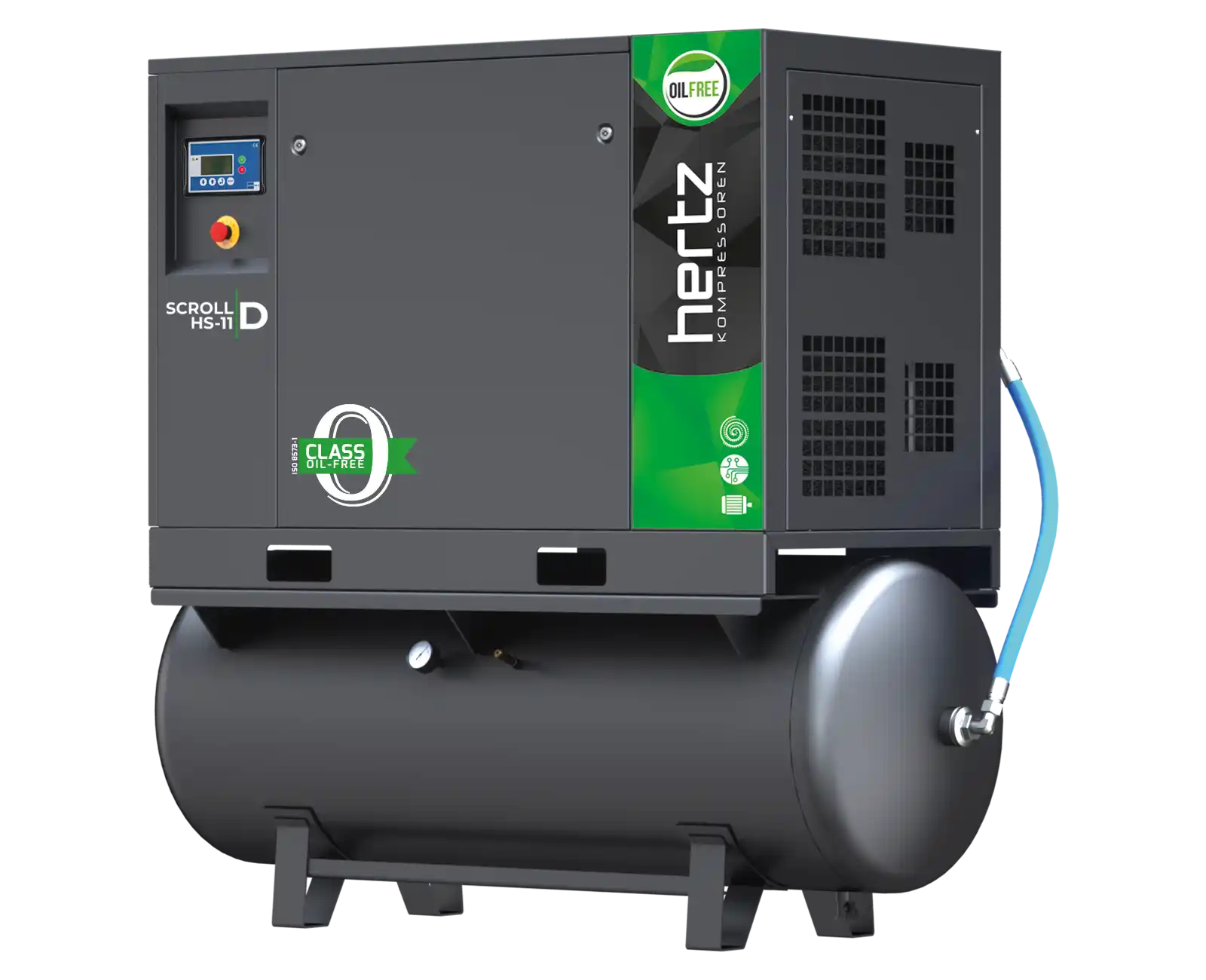

HS11-D 8 115 1,2 42,38 11(2 x 5,5) / 15 G 3/4" 1500 x 821 x 1050 1972 x 926 x 1725 - 425 610 -
10 145 0,94 33,2
HS15-D 8 115 1,7 60,03 15(2 x 7,5) / 20 G 3/4" 1500 x 821 x 1050 1972 x 926 x 1725 - 440 625 -
10 145 1,36 48,02
TRIPLE HS11-T 8 115 1,2 42,38 11(3 x 4) / 15 G 1" 1500 x 823 x 1840 - - 540 - -
10 145 1,02 36,02
HS16,5-T 8 115 1,8 63,57 16,5(3 x 5,5) / 22 G 1" 1500 x 823 x 1840 - - 615 - -
10 145 1,41 49,79
HS22.5-T 8 115 2,55 90,05 22,5(3 x 7,5) /30 G 1" 1500 x 823 x 1840 - - 625 - -
10 145 2,04 72,04
QUADRUPLE HS15-Q 8 115 1,6 56,5 15(4 x 4) / 20 G 1" 1500 x 823 x 1840 - - 645 - -
10 145 1,36 48,03
HS22-Q 8 115 2,4 84,75 22(4 x 5,5) / 30 G 1" 1500 x 823 x 1840 - - 745 - -
10 145 1,88 66,39
HS30-Q 8 115 3,4 120,07 30(4 x 7,5) / 40 G 1" 1500 x 823 x 1840 - - 755 - -
10 145 2,72 96,06

- Unit performances measured in reference conditions which are 1 bar absolute air Pressure, %0 relative humidity, 20°C inlet air temperature, 71°C thermostatic valve set temperature and use of Smartoil.
- Hertz Kompressoren reserves its rights to make changes in its products and specifications without prior notice.
* Refers to free air delivery measured according to ISO 1217:2009, Annex E standard.
