Advantages

• Very low pressure drops

• Remaining oil aerosol content no more than 0.003 ppm

• Equal air distribution

• Long service life

• User-friendly replacement procedure

• Oil indicator



Oil in aerosol form and oil mist lower the quality of the compressed air and can damage pneumatic equipment.

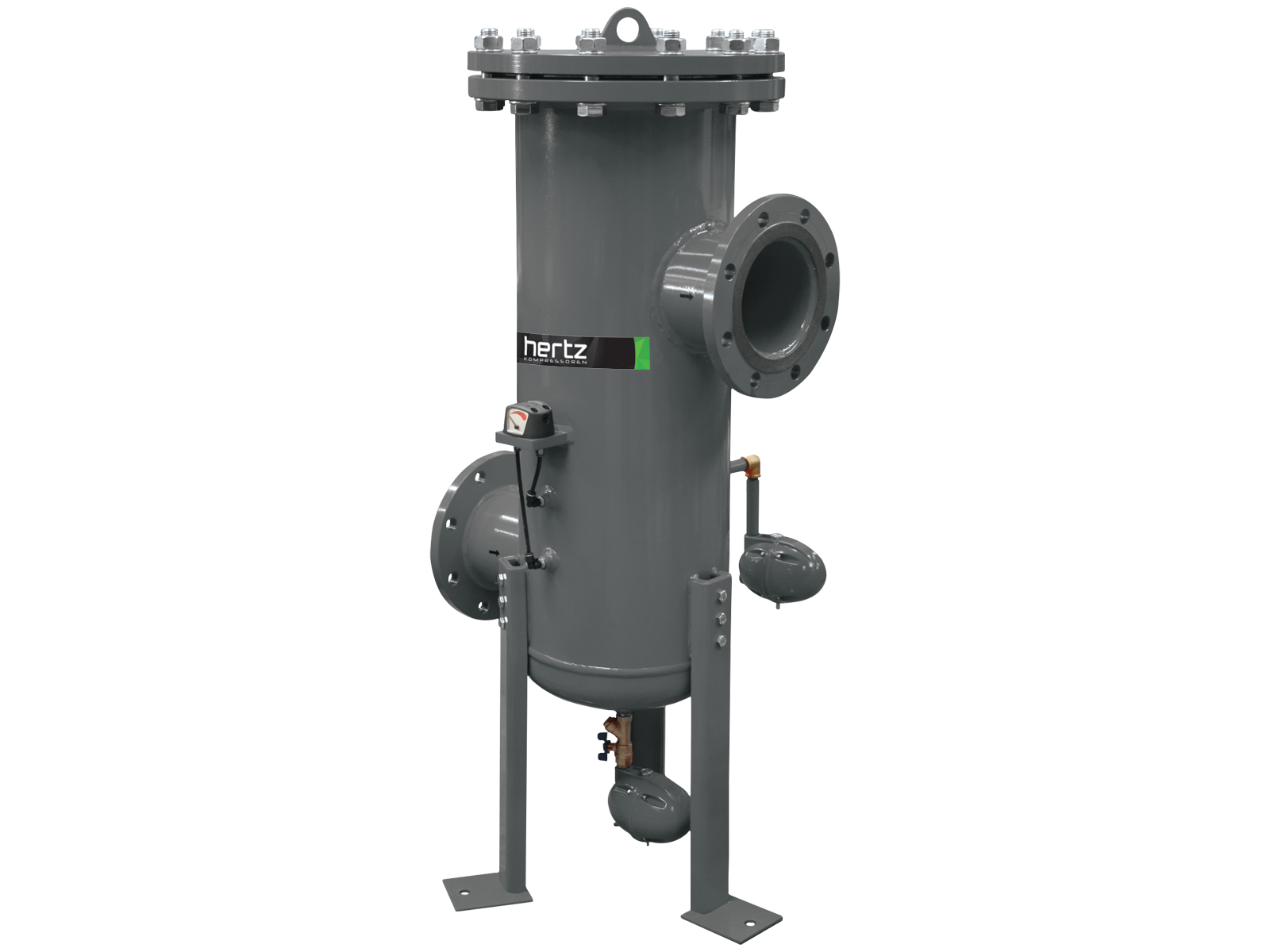

The patented Carbolescer can eliminate both the aerosol and mist forms of oil. It consists of a pleated separator layer, a carbon layer, and a particulate layer. The pleated separator layer removes the aerosol form of oil. When oily compressed air enters the unit, the oil droplets coalesce and run down the filter medium. The collected liquid oil is automatically drained off. The pleated separator filters out oil contaminants as small as 0.01 microns. In addition to the pleated separator, the activated carbon layer adsorbs oil mist. The oil mist is physically retained by the activated carbon granules and as a result, the oil content can be reduced to 0.003 ppm. The final particulate filter layer actively removes carbon dust and maintains the quality of the compressed air.

TECHNICAL  SPECIFICATIONS

Model Max. Remaining Oil
Aerosol Content
@ 21°C
Recommended
Capacity @ 7 barg
Max. Operating
Pressure
Connection Size
Inlet-Outlet
Length Height
ppm (Nm3/h) (barg) psi (mm) (mm)
HELM-C G100-16 0,003 35 16 232 G 1/2" 102 302
HELM-C G150-16 0,003 45 16 232 G 1/2" 123 352
HELM-C G200-16 0,003 50 16 232 G 1" 123 412
HELM-C G250-16 0,003 70 16 232 G 1" 123 454
HELM-C G300-16 0,003 85 16 232 G 1 1/2" 123 507
HELM-C G500-16 0,003 100 16 232 G 1 1/2" 123 537
HELM-C G600-16 0,003 130 16 232 G 1 1/2" 123 583
HELM-C G850-16 0,003 170 16 232 G 1 1/2" 160 668
HELM-C G1210-16 0,003 200 16 232 G 2" 160 740
HELM-C F150-14 0,003 255 14 203 DN 50 500 1065
HELM-C F300-14 0,003 510 14 203 DN 50 500 1165
HELM-C F600-14 0,003 1020 14 203 DN 50 500 1523
HELM-C F800-14 0,003 1360 14 203 DN 80 500 1743
HELM-C F1200-14 0,003 2040 14 203 DN 80 600 1606
HELM-C F1600-14 0,003 2720 14 203 DN 80 600 1747
HELM-C F2100-14 0,003 3570 14 203 DN 100 700 1651
HELM-C F2750-14 0,003 4675 14 " DN 100 700 1798
HELM-C F4200-14 0,003 7140 14 203 DN 150 800 1750
HELM-C F6000-14 0,003 10200 14 203 DN 150 800 1997
HELM-C F8000-14 0,003 13600 14 203 DN 200 850 2095
HELM-C F10000-14 0,003 17000 14 203 DN 250 1000 2208
HELM-C F12000-14 0,003 20400 14 203 DN 300 1000 2775
