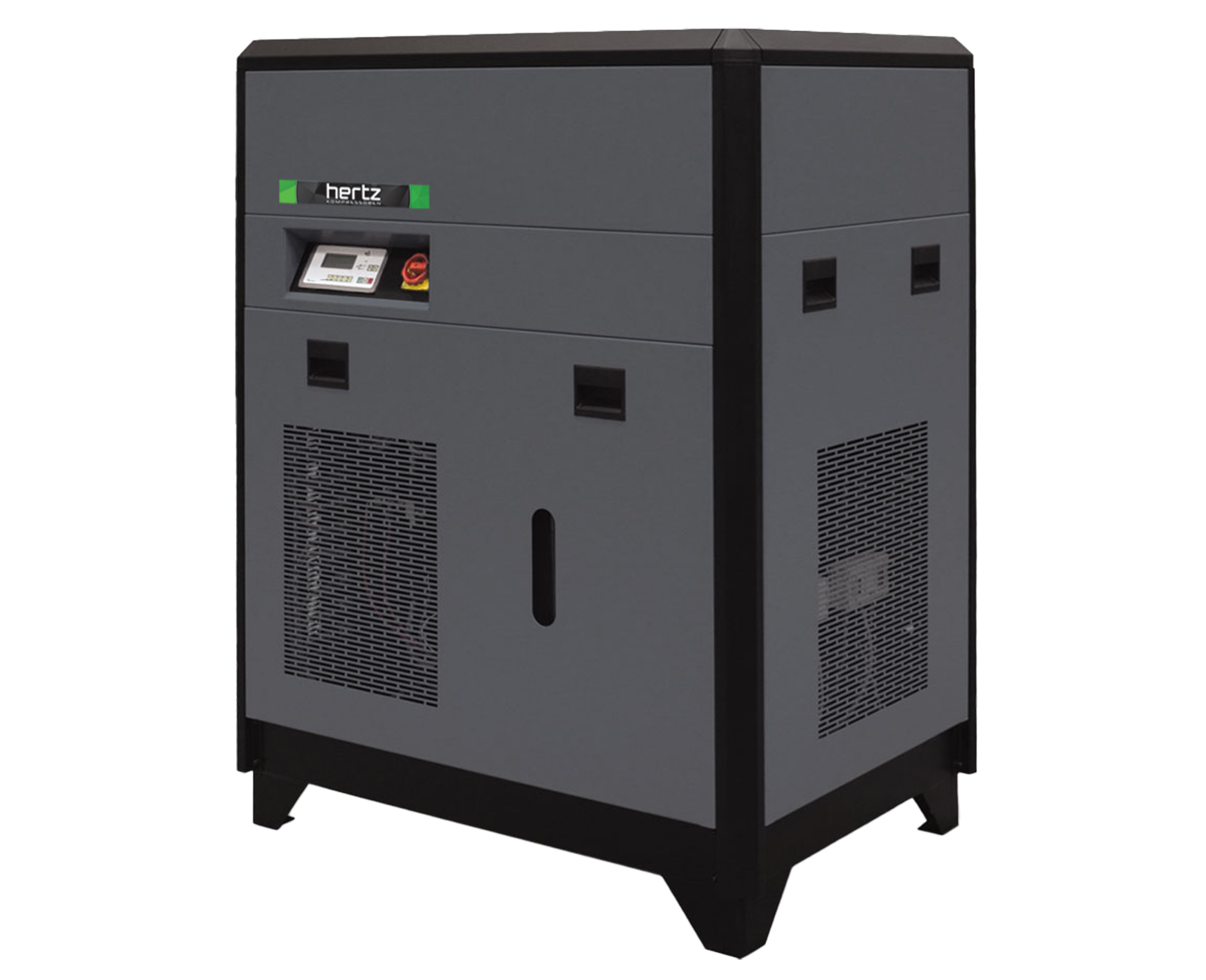

HRC Refrigerated Type Cycling (Thermal Mass) Air Dryers [NEW]

HBP Blower Purge Adsorption Compressed Air Dryers

Get A Quote Contact Share

hrc-refrigerated-type-cycling-thermal-mass-air-dryers-new

Advantages

• Energy savings with capacity control

• 3°C dew point

• Very low pressure drop

• Suitable for tropical conditions

• Environmentally friendly R513a refrigerant

• Large condenser

• Operates at 60°C inlet temperature and in 50°C ambient temperature

• Stainless steel components

• High efficiency

These types of dryers consume energy dependent on air flow.

The dryer’s cooling system cools the water-glycol mixture down to 1°C and holds this mixture in a stainless steel container.A small pump circulates the water-glycol mixture to cool the compressed air. The cooling system’s compressor turns off when the mixture reaches the required temperature resulting in considerable energy savings.

TECHNICAL SPECIFICATIONS

Model	Max. Working Pressure		Capacity		Connection	Filter Model	Tensióon (V/ph/Hz)	Dimensions (mm)			Weight (kg)	Controller	Refrigerant
Model	bar	psi	m³/min	cfm	Connection	Filter Model	Tensióon (V/ph/Hz)	Length	Width	Height	Weight (kg)	Controller	Refrigerant
HRC 100	16	232	2,8	100	G 1 1/2"	HGKON405 X/Y	115V / 1 Ph / 60 Hz	777	747	1380	89	DigiPro	R513a
HRC 125	16	232	3,5	125	G 1 1/2"	HGKON405 X/Y	115V / 1 Ph / 60 Hz	777	747	1380	95	DigiPro	R513a
HRC 140	16	232	4	140	G 1 1/2"	HGKON405 X/Y	230V / 1 Ph / 60 Hz	777	747	1380	100	DigiPro	R513a
HRC 175	16	232	5	175	G 2"	HGKON805 X/Y	230V / 1 Ph / 60 Hz	855	725	1505	178	DigiPro	R513a
HRC 200	16	232	5,7	200	G 2"	HGKON805 X/Y	230V / 1 Ph / 60 Hz	855	725	1505	184	DigiPro	R513a
HRC 250	16	232	7,1	250	G 2"	HGKON1205 X/Y	230V / 1 Ph / 60 Hz	830	730	1765	194	DigiPro	R513a
HRC 350	16	232	9,9	350	G 2"	HGKON1205 X/Y	460V / 3 Ph / 60 Hz	830	730	1765	242	ESD-3	R513a
HRC 425	16	232	12	425	G 2"	HGKON1205 X/Y	460V / 3 Ph / 60 Hz	830	730	1765	253	ESD-3	R513a
HRC 550	16	232	15,6	550	G 3"	HGKON-HC-1805 X/Y	460V / 3 Ph / 60 Hz	1150	800	1740	295	ESD-3	R513a
HRC 700	16	232	19,8	700	G 3"	HGKON-HC-1805 X/Y	460V / 3 Ph / 60 Hz	1150	800	1740	310	ESD-3	R513a
HRC 900	16	232	25,5	900	G 3"	HGKON-HC-2775 X/Y	460V / 3 Ph / 60 Hz	1315	880	1790	411	ESD-3	R513a
HRC 1100	16	232	31,2	1100	G 3"	HGKON-HC-2775 X/Y	460V / 3 Ph / 60 Hz	1315	880	1790	443	ESD-3	R513a
HRC 1350	16	232	38,3	1350	DN100	HGK05850 M X/Y	460V / 3 Ph / 60 Hz	1600	995	1975	870	ESD-3	R513a
HRC 1500	16	232	42,5	1500	DN100	HGK05850 M X/Y	460V / 3 Ph / 60 Hz	1600	995	1975	557	ESD-3	R513a
HRC 2000	16	232	56,7	2000	DN100	HGK05850 M X/Y	460V / 3 Ph / 60 Hz	1800	1080	2076	737	ESD-3	R513a
HRC 2350	16	232	66,6	2350	DN100	HGK05850 M X/Y	460V / 3 Ph / 60 Hz	1800	1080	2076	760	ESD-3	R513a
HRC 2750	16	232	77,9	2750	DN150	-	460V / 3 Ph / 60 Hz	2190	1065	2024	941	ESD-3	R513a
HRC 3000	16	232	85	3000	DN150	-	460V / 3 Ph / 60 Hz	2190	1065	2024	963	ESD-3	R513a
HRC 3600	16	232	102	3600	DN150	-	460V / 3 Ph / 60 Hz	2550	1550	2115	1025	ESD-3	R513a
HRC 4000	16	232	113,3	4000	DN200	-	460V / 3 Ph / 60 Hz	2550	1550	2115	1162	ESD-3	R513a
HRC 5000	16	232	141,7	5000	DN200	-	460V / 3 Ph / 60 Hz	2550	1550	2175	1480	ESD-3	R513a
