HBD LASER SERIES [NEW]

11-37 kW 14,5-16-20 bar 0,55-4,58 m³/min

Oil Injected, Belt Driven, Fixed Speed

High Pressure Rotary Screw Air Compressors

HBD LASER compressors always offer high performance in laser cutting machines and mining industries.

Advantages

• A booster compressor is not needed to increase the pressure.

• Economic, service-friendly design minimizes downtime and reduces maintenance costs.

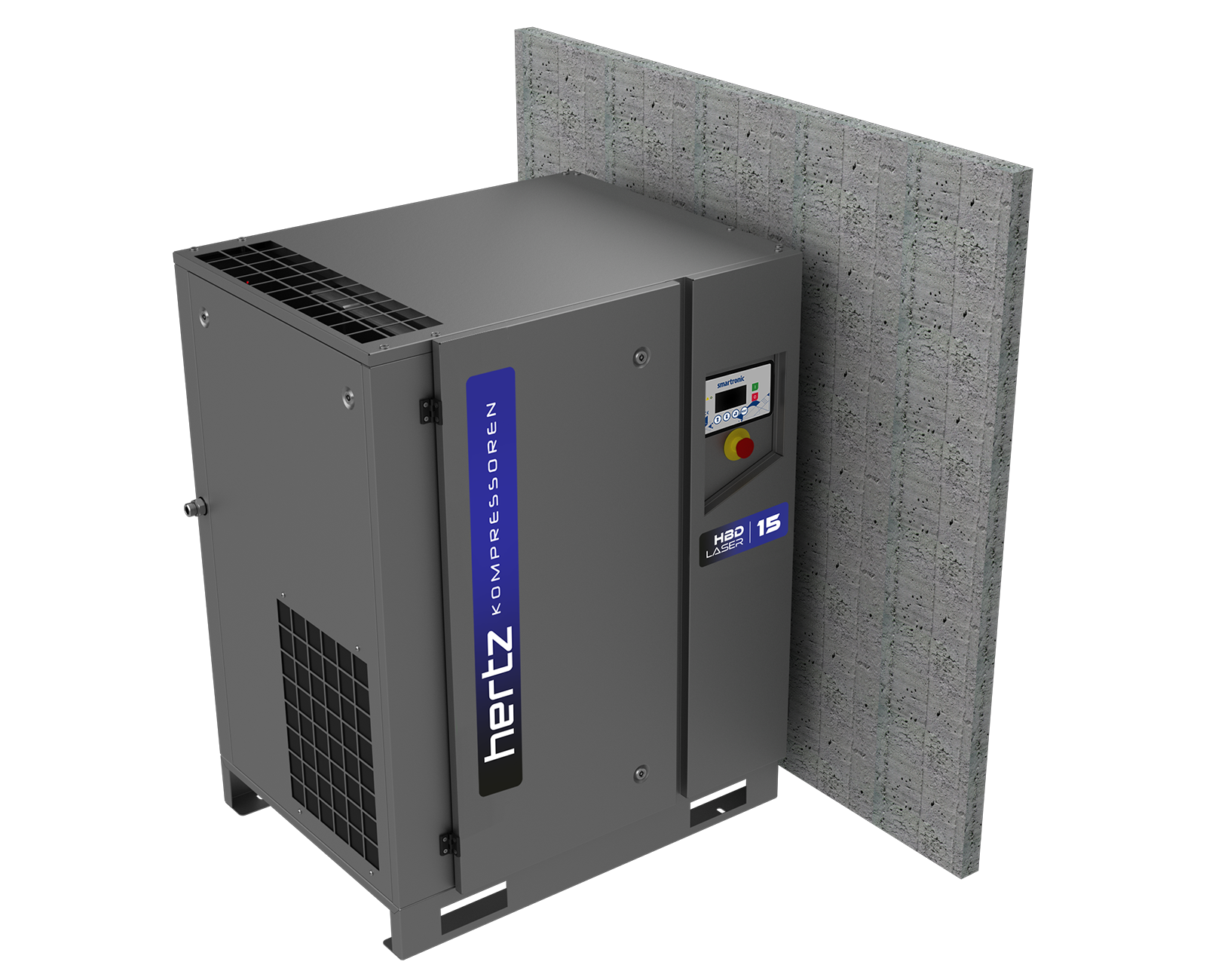

• Blind cover allows you to place it up against the wall. Convenient placement makes for easy servicing, maintenance, and access. (22 kW and below)

• Optimized intake chamber and insulated cold air intake increase energy efficiency. (30 kW and above)

• Compact design has the compressed air widget and compressor in a single place meets your expectations and demands at the optimal level.

• Efficient motor keeps energy use and costs down.

• High-quality components for a long service life and low maintenance costs.

General Features

• Next gen screw block and motor

• Electronic control

• Easy installation and rapid commissioning thanks to its compact design

• Operating pressure up to 20 bar

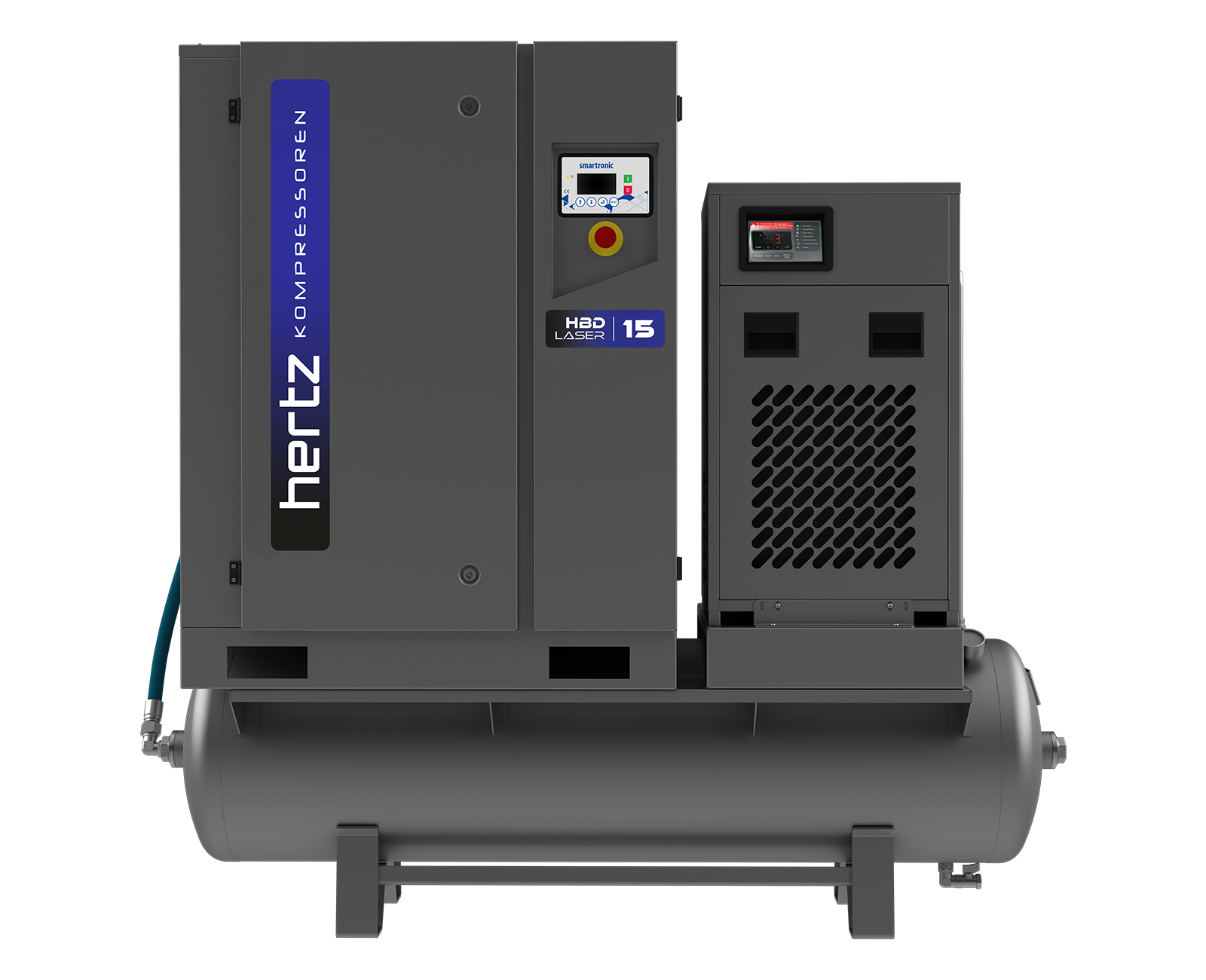

• Dryer & tank mounted option (22 kW and below)

Screw Block

• Durable screw block provides high-capacity air and is specially selected for each model’s capacity requirement

• Air production with less loss thanks to new rotor profiles

• Next gen bearing design which increased load-bearing capacity

• Low maintenance and replacement costs

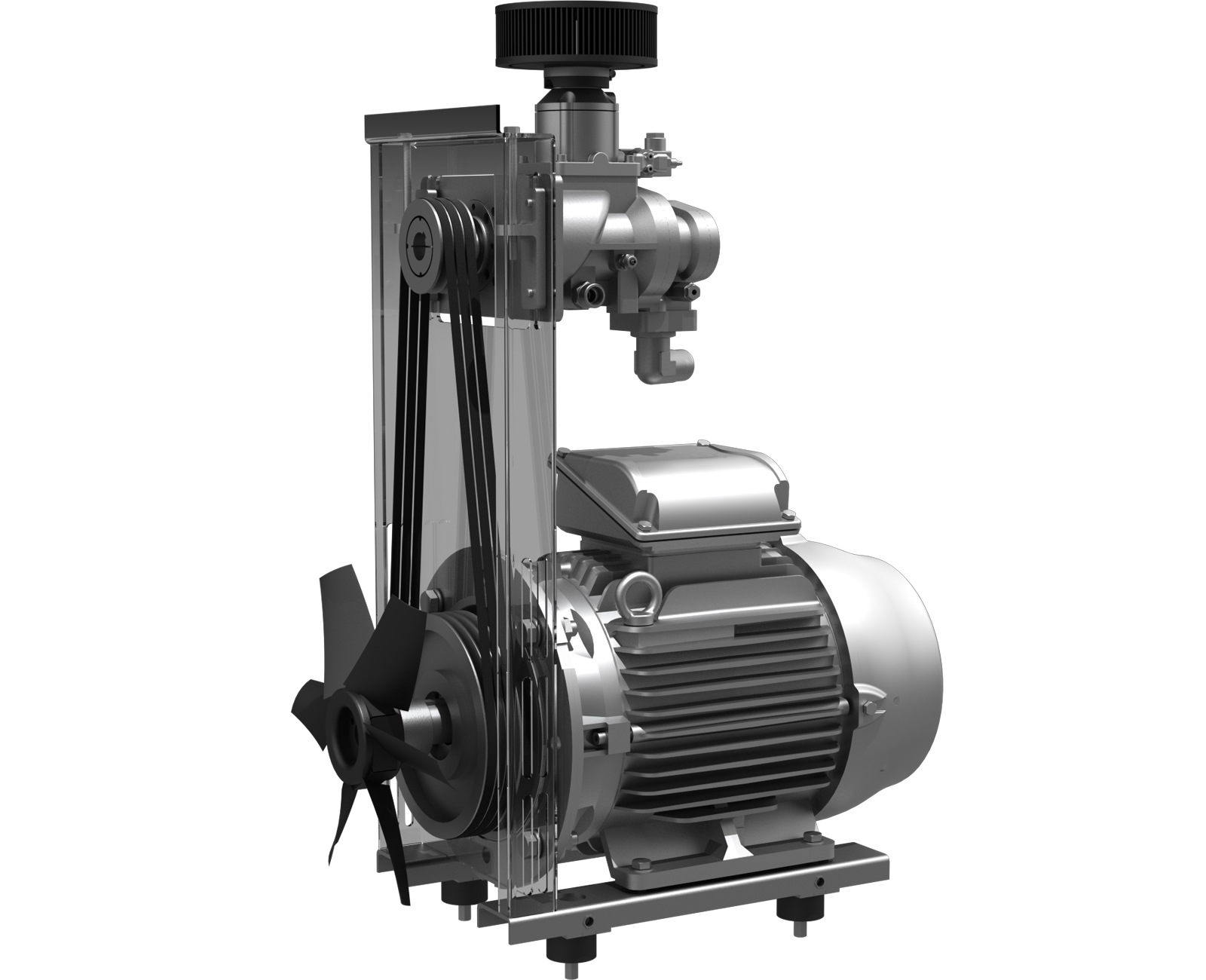

Main Motor and Drive System

• IE3 efficiency-class electric motor

• Star/delta motor starter

• Belt-pulley drive system

• Easy-to-use belt tensioner

• Pulley bushing for easy servicing

Air Filter

• 99.9% efficiency in particle separation down to 3 microns

• Low pressure loss

• Easy maintenance and long service life

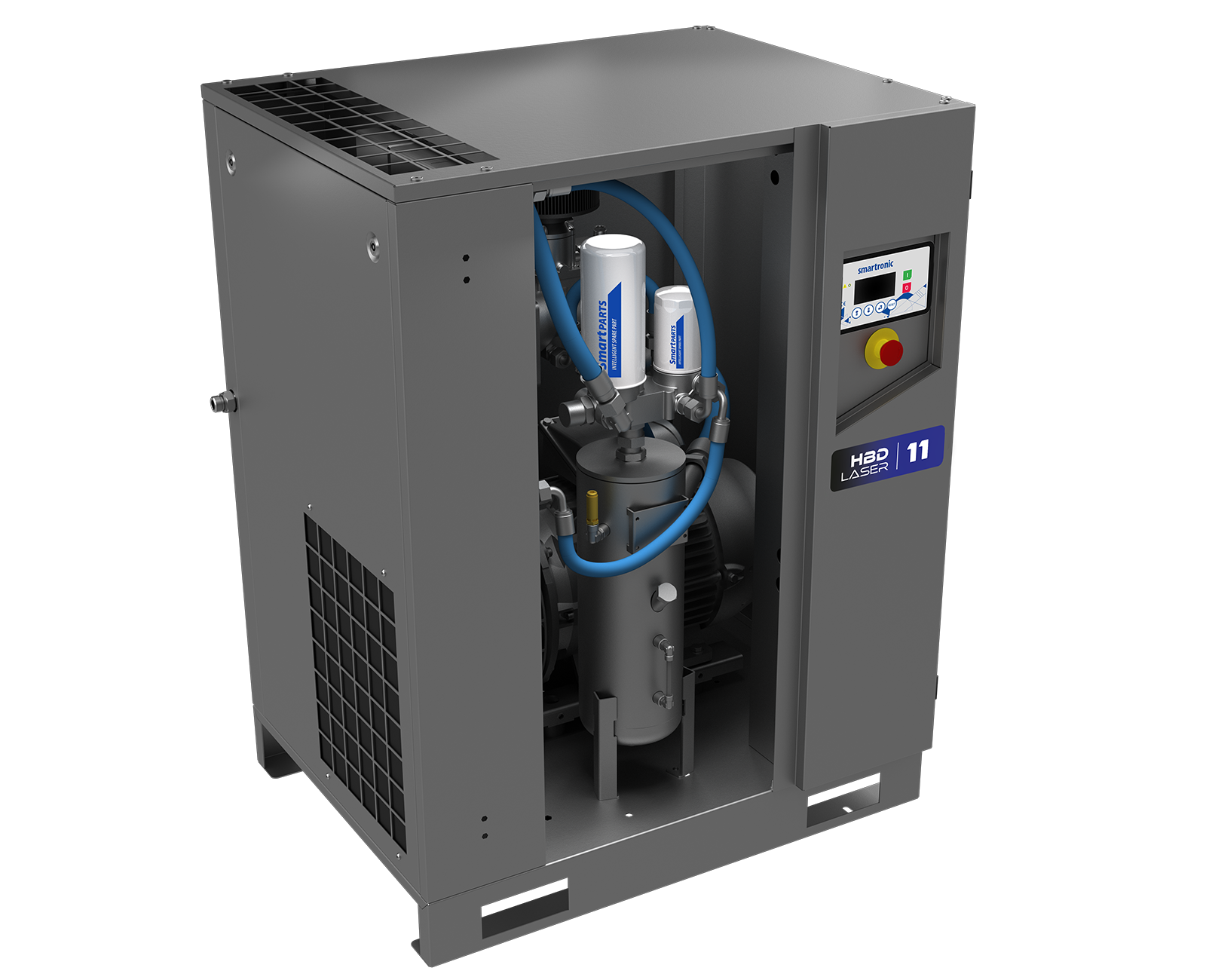

Oil Separator

• Spin-on separator: easy to replace, assemble, and disassemble

Controller

• Without the need for an external main controller, ability to co-aged work synchronized with Master/Slave for up to two compressors

• Internal ModBus communication

• User-friendly on-screen interface

• Alarm log records last 20 alarms

• Maintenance warnings and log records

11-37 kW 14,5-16-20 bar 0,55-4,58 m³/min

TECHNICAL SPECIFICATIONS

Model	Pressure		Capacity*		Motor	Connection	Dimensions [Width x Length x Height] (mm)		Weight (kg)		Air Receiver
	bar	psi	m³/min	cfm	kW/HP		Base Mounted	Tank + Dryer	Base Mounted	Tank + Dryer
HBD LASER 11	14,5	210	0,97	34,3	11/15	G3/4"	962 x 732 x 1200	1880 x 732 x 1700	295	470 (14,5-16 bar) / 495 (20 bar)	250L
	16	232	0,78	27,6
	20	290	0,55	19,4
HBD LASER 15	14,5	210	1,48	52,3	15/20	G3/4"	962 x 732 x 1200	1880 x 732 x 1700	315	490 (14,5-16 bar) / 515 (20 bar)	250L
	16	232	1,37	48,4
	20	290	1,02	36
HBD LASER 18,5	14,5	210	1,72	60,7	18,5/25	G3/4"	1039 x 948 x 1462	2135 x 1200 x 2010	425	835	500L
	16	232	1,6	56,5
	20	290	1,15	40,6
HBD LASER 22	14,5	210	2,32	81,9	22/30	G3/4"	1039 x 948 x 1462	2135 x 1200 x 2010	465	900	500L
	16	232	2,13	75,2
	20	290	1,61	56,9
HBD LASER 30	14,5	210	3,5	124	30/40	G1 1/4"	1135 x 1035 x 1600	-	665	-	-
	16	232	3,23	114
	20	290	2,49	88
HBD LASER 37	14,5	210	4,58	162	37/50	G1 1/4"	1135 x 1035 x 1600	-	725	-	-
	16	232	4,24	150
	20	290	3,35	118
