    HO2 Oxygen Generators [NEW]

    HOX Oxygen Generators [NEW]

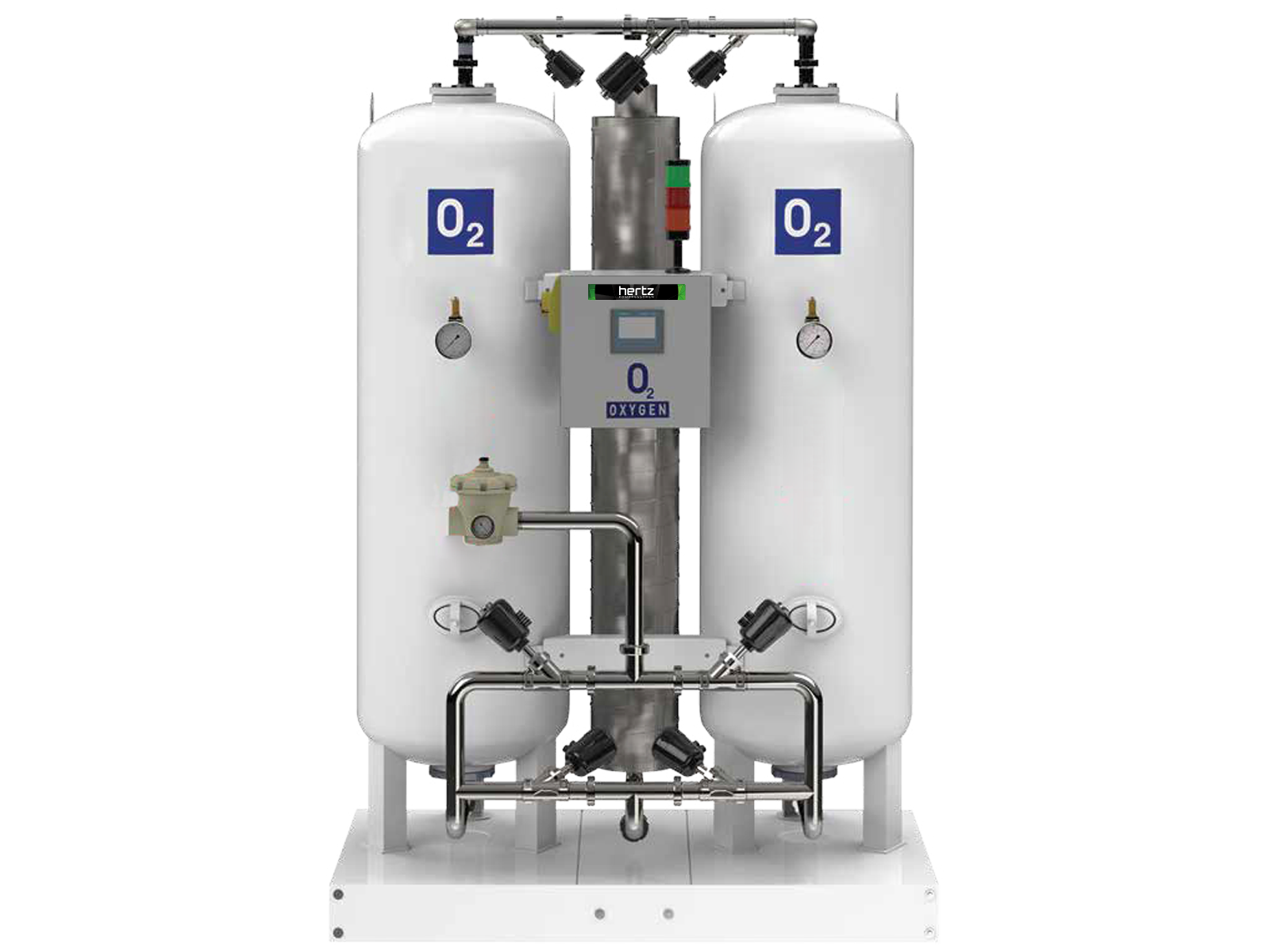

    HO2 Oxygen Generators [NEW]
    ho2-oxygen-generators-new

     Advantages

    • Consistently high purity guaranteed

    • Low compressed air consumption and maintenance costs

    • Ease of use and maintenance

    • Instant monitoring and recording of parameters such as purity, pressure, flow rate on the screen

    • Visual and audio alarms for various parameters

    • Fully automatic operation


     Optional

    • Remote control

    • Siemens S/ 1200 PLC

    • Flowmeter



    The parameters such as compressed air temperature, pressure, oxygen purity and oxygen pressure are all monitored continuously. Hertz oxygen generators guarantee sustainable and high efficiency production.

    Pneumatic valves that ensure regular flow of air and oxygen during the process are manufactured from AISI 316L noncorrosive material. Owing to its long operation life, it provides problem free production for long years. Moreover, 316L stainless steel valves no need for maintenances.

    TECHNICAL  SPECIFICATIONS

    Model Free Oxygen Delivery @ Folowing Purity Level
    90% 93% 95%
    m³/min cfm m³/min cfm m³/min cfm
    HO2 10 0,013 0,46 0,012 0,42 0,010 0,35
    HO2 20 0,023 0,81 0,020 0,71 0,017 0,60
    HO2 30 0,043 1,52 0,040 1,41 0,035 1,24
    HO2 40 0,063 2,22 0,058 2,05 0,053 1,87
    HO2 60 0,093 3,28 0,085 3,0 0,075 2,65
    HO2 100 0,163 5,76 0,142 5,01 0,133 4,70
    HO2 120 0,208 7,35 0,192 6,78 0,167 5,90
    HO2 150 0,250 8,83 0,225 7,95 0,205 7,24
    HO2 200 0,333 11,76 0,283 9,99 0,267 9,43
    HO2 300 0,500 17,66 0,448 15,82 0,417 14,73
    HO2 400 0,700 24,72 0,633 22,35 0,583 20,59
    HO2 600 1,000 35,31 0,917 32,38 0,833 29,42
    HO2 800 1,333 47,07 1,225 43,26 1,117 39,45
    HO2 1000 1,750 61,8 1,583 55,9 1,500 52,97
    HO2 1400 2,333 82,39 2,083 73,56 1,833 64,73
    HO2 1500 2,583 91,22 2,333 82,39 2,133 75,33
    HO2 2000 3,250 114,77 2,933 103,58 2,667 94,18
    HO2 2500 4,083 144,19 3,750 132,43 3,417 120,67
    HO2 3000 4,917 173,64 4,417 155,98 4,083 144,19
    HO2 4000 6,500 229,55 5,917 208,96 5,417 191,3
