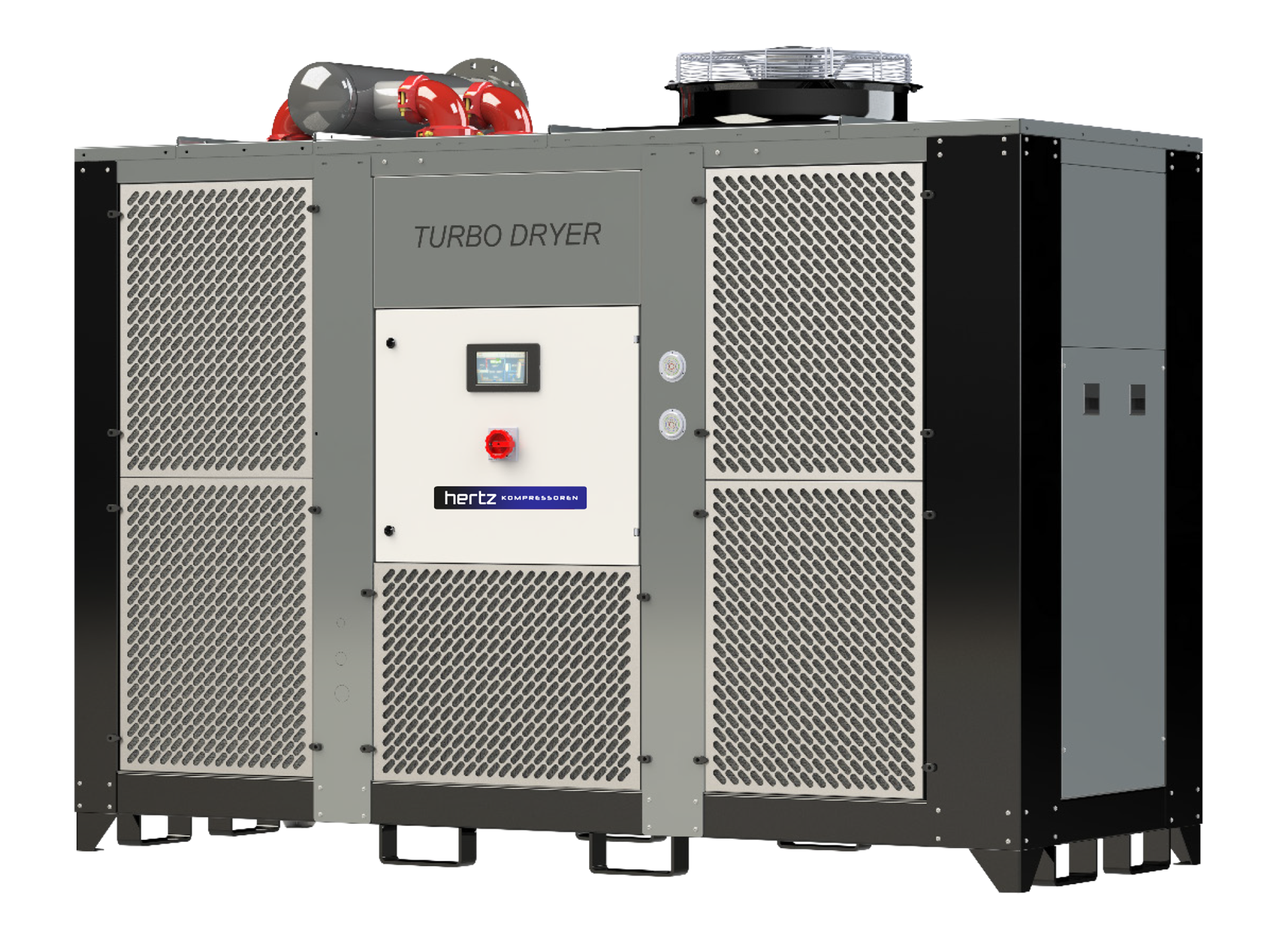

HTD High Capacity Turbo Compressed Air Dryers [NEW]

HBP Blower Purge Adsorption Compressed Air Dryers

Get A Quote Contact Share

htd-high-capacity-turbo-compressed-air-dryers-new

Key Features

• 7" touch screen (HTD 25000 - 30000), 4.3" touch screen (HTD 10000 - 20000)

• Standard MODBUS RS485 communication

• High strength aluminium heat exchanger

• High efficiency scroll (HTD 10000 - 20000) and screw (25000 - 30000) refrigerant gas compressor

• Constant dew point thanks to thermal mass technology

• Stainless steel thermal mass-cooler evaporator and thermal mass circulation pump

• Speed controlled (EC) fan motor

• Zero-loss evacuation

• 10 barg maximum operating pressure

• Water cooled condenser

What is turbo type air dryer?

The new compact design of turbo dryers, which can dry compressed air at high capacities, gathers all the components of the drying system under a single canopy. With HTD Series, compressed air with capacities of 10000 Nm³/h - 30000 Nm³/h can be dried up to 3°C dew point.

In addition, thanks to thermal mass technology, it dries the air with low energy consumption even in systems where compressed air consumption is not constant.

TECHNICAL SPECIFICATIONS

Model	Pressure		Capacity		Connection	Tension (V/ph/Hz)	Dimensions (mm)			Cooling Type	Refrigerant Type
Model	bar	psi	m³/min	cfm	Connection	Tension (V/ph/Hz)	Length	Width	Height	Cooling Type	Refrigerant Type
HTD 10000	10	145	142	5000	F 8"	460V / 3Ph / 60Hz	1362	2338	2341	Air Cooled	R410a
HTD 12500	10	145	170	6000	F 8"	460V / 3Ph / 60Hz	1569	3438	2225	Air Cooled	R410a
HTD 15000	10	145	213	7500	F 10"	460V / 3Ph / 60Hz	1579	3438	2335	Air Cooled	R410a
HTD 20000	10	145	283	10000	F 12"	460V / 3Ph / 60Hz	1578	3441	2362	Air Cooled	R410a
HTD 25000	10	145	338	12500	F 12"	460V / 3Ph / 60Hz	3292	2067	2375	Air Cooled	R407c
HTD 30000	10	145	425	15000	F 14"	460V / 3Ph / 60Hz	3292	2067	2397	Air Cooled	R407c
HTD 10000 W	10	145	142	5000	F 8"	460V / 3Ph / 60Hz	1362	2338	2341	Water Cooled	R410a
HTD 12500 W	10	145	170	6000	F 8"	460V / 3Ph / 60Hz	1569	3438	2225	Water Cooled	R410a
HTD 15000 W	10	145	213	7500	F 10"	460V / 3Ph / 60Hz	1579	3438	2335	Water Cooled	R410a
HTD 20000 W	10	145	283	10000	F 12"	460V / 3Ph / 60Hz	1578	3441	2362	Water Cooled	R410a
HTD 25000 W	10	145	338	12500	F 12"	460V / 3Ph / 60Hz	3292	2067	2375	Water Cooled	R407c
HTD 30000 W	10	145	425	15000	F 14"	460V / 3Ph / 60Hz	3292	2067	2397	Water Cooled	R407c
