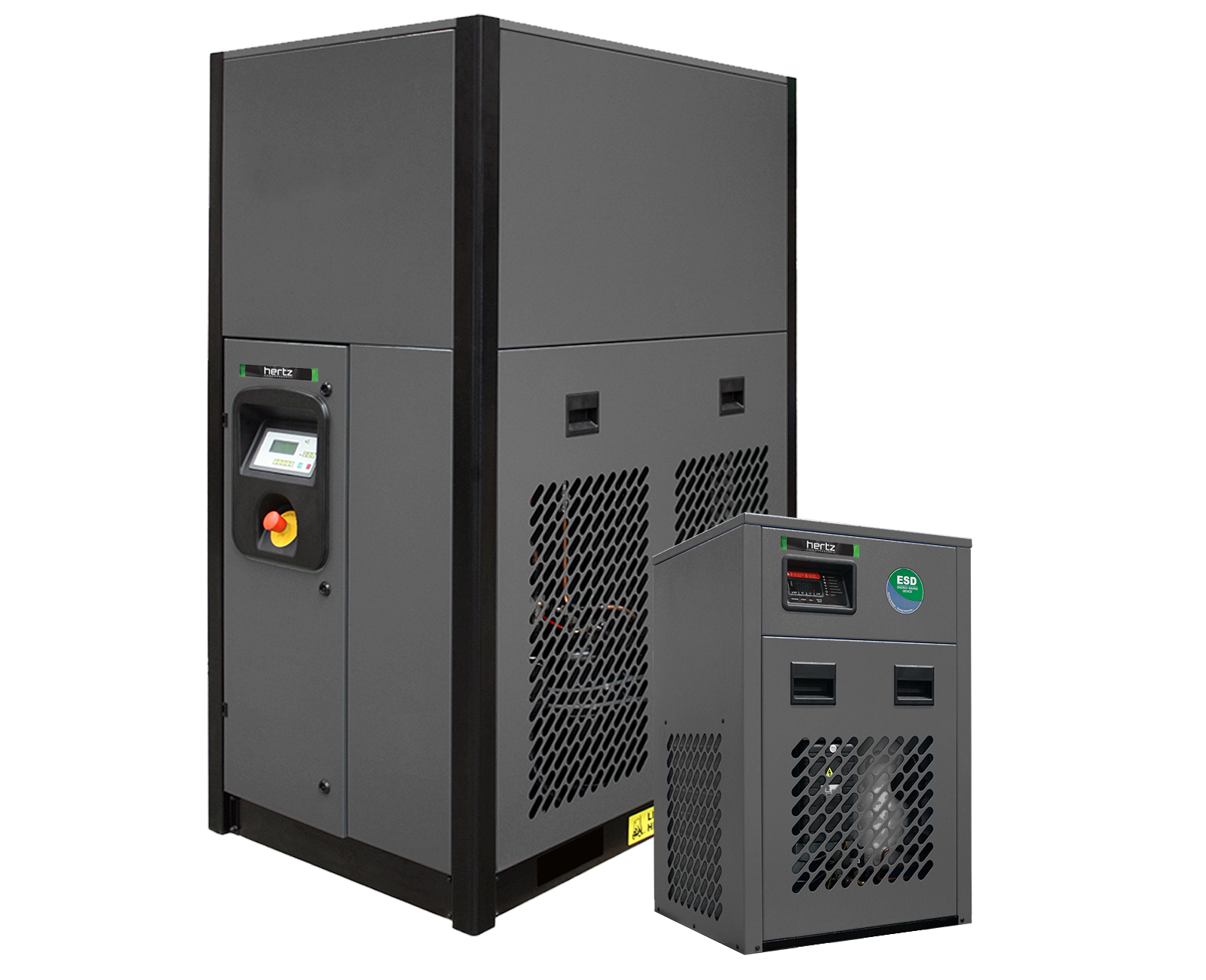

hrd-refrigerated-type-compressed-air-dryers

Key Features

• Very low pressure losses

• Design suitable for tropical climates

• R-134a Refrigerant

• Operates at 60°C inlet temperature and 50°C ambient temperature

• Compact design

• Minimum footprint

• Digital controller for energy savings

• High efficiency

• Ease of access

• Separate electrical and cooling sections

What is a refrigerated air dryer?

They cool the compressed air passing through them and keep that air dry down to the dew point of +3°C.

Inlet and outlet filters integrated into the dryer (up to the HRD 210 model) reduce the particle level by 0.01 microns and the oil particle level by 0.01 mg/m³.

TECHNICAL SPECIFICATIONS

Model	Capacity		Connection Size	Voltage**	Refrigerant	Max. Operating Pressure	Maximum Ambient Temperature	Maximum Inlet Temperature	Filter	Dimensions (mm)			Weight
Model	m³/min	cfm	Connection Size	Voltage**	Refrigerant	bar	°C	°C	Filter	Length	Width	Height	kg
HRD 10	0.35	12	G ½”	230V/1/50 Hz	R-134a	16	50	60	Included	423	393	567	32
HRD 20	0.58	20	G ½”	230V/1/50 Hz	R-134a	16	50	60	Included	423	393	567	32
HRD 30	0.83	29	G ½”	230V/1/50 Hz	R-134a	16	50	60	Included	423	393	567	32
HRD 35	1.05	37	G ½”	230V/1/50 Hz	R-134a	16	50	60	Included	423	393	567	35
HRD 40	1.45	51	G ¾”	230V/1/50 Hz	R-134a	16	50	60	Included	473	453	832	51
HRD 50	2.17	77	G ¾”	230V/1/50 Hz	R-134a	16	50	60	Included	473	453	832	53
HRD 60	2.83	100	G ¾”	230V/1/50 Hz	R-134a	16	50	60	Included	473	453	832	55
HRD 70	3.3	117	G 1 ½”	230V/1/50 Hz	R-134a	16	50	60	Included	553	503	874	78
HRD 80	4.7	166	G 1 ½”	230V/1/50 Hz	R-134a	16	50	60	Included	553	503	874	83
HRD 90	5.9	208	G 1 ½”	230V/1/50 Hz	R-134a	16	50	60	Included	553	503	874	86
HRD 100	7.8	275	G 2”	230V/1/50 Hz	R-134a	16	50	60	Included	678	648	1157	160
HRD 110	9.8	346	G 2”	230V/1/50 Hz	R-134a	16	50	60	Included	678	648	1157	165
HRD 120	13.8	487	G 2”	230V/1/50 Hz	R-134a	16	50	60	Included	948	728	1370	220
HRD 130	18.3	646	G 2”	230V/1/50 Hz	R-134a	16	50	60	Included	948	728	1370	230
HRD 140	21.8	770	G 3”	400V/3/50Hz	R-134a	16	50	60	Included	948	798	1460	270
HRD150	27.1	957	G 3”	400V/3/50Hz	R-134a	16	50	60	Included	948	798	1460	285
HRD 160	36.7	1296	G 3”	400V/3/50Hz	R-134a	16	50	60	Included	1163	778	1725	392
HRD 170	43.7	1543	G 3”	400V/3/50Hz	R-134a	16	50	60	Included	1163	778	1725	410
HRD 180	52.4	1850	DN100	400V/3/50Hz	R-134a	16	50	60	Included	1397	847	1770	492
HRD 190	61.6	2175	DN100	400V/3/50Hz	R-134a	16	50	60	Included	1397	847	1770	520
HRD 200	80	2825	DN100	400V/3/50Hz	R-134a	16	50	60	Included	1467	1077	1930	696
HRD 210	92	3249	DN100	400V/3/50Hz	R-134a	16	50	60	Included	1467	1077	1930	718
HRD 220	109.7	3874	DN150	400V/3/50Hz	R-134a	16	50	60	Not Included	2188	1062	1925	900
HRD 230	123.9	4375	DN150	400V/3/50Hz	R-134a	16	50	60	Not Included	2188	1062	1925	925
HRD 240	141.6	5001	DN150	400V/3/50Hz	R-134a	16	50	60	Not Included	2247	1200	2044	975
HRD 250	165.2	5834	DN200	400V/3/50Hz	R-134a	16	50	60	Not Included	2247	1200	2044	1100
HRD 260	196.7	6946	DN200	400V/3/50Hz	R-134a	16	50	60	Not Included	2550	1550	2100	1400

- Hertz Kompressoren reserves its rights to change the specifications without any prior notice.
* Capacity is given at atmospheric Pressure at 20 °C (ISO 1217) in accordance with norms ISO 7183-8573-1 and Pneurop 6611- Class 4-7 bar -35 °C inlet - 25 °C ambient.
** Consult sales representative for optional voltages
