    HSC SERIES

    IMPETUS SERIES
    HGS-HSC SERIES
    FRECON PLUS SERIES

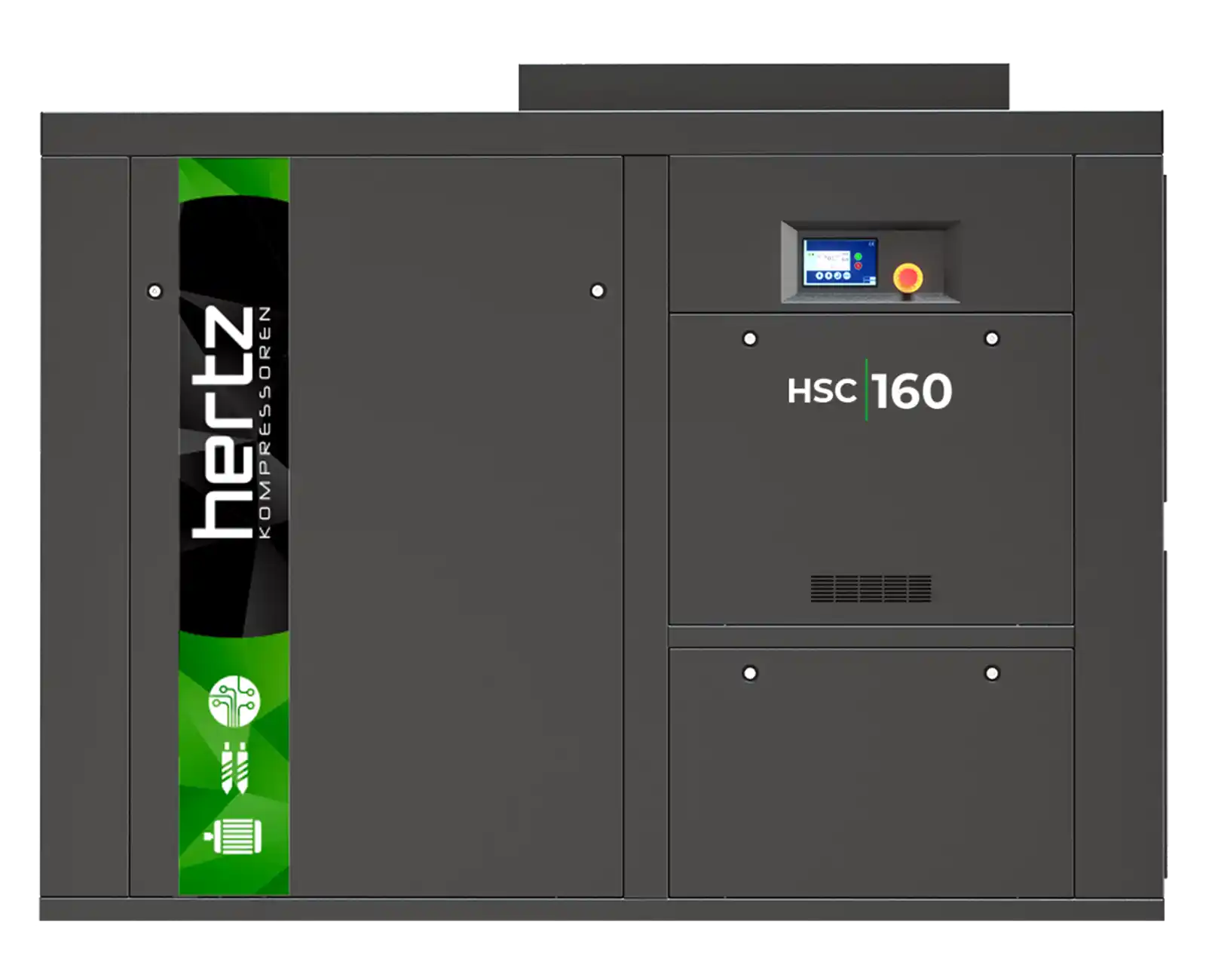

    HSC SERIES
    HSC-D SERIES
    HSB SERIES
    HSC 16BAR SERIES
    HGS-HSC SERIES [NEW]
    FRECON PLUS ᵖᵐ SERIES [NEW]

     45-160 kW   7,5-10-13 bar  5,4-27,4 m³/min


    Oil Injected, Belt Driven, Fixed Speed

    Rotary Screw Air Compressors

    Our  well-designed powerful  screw compressor series can be operated easily by all users.

     Advantages

    • Easily accessible parts for reduced maintenance costs.

    • Protective covers can be removed and fitted quickly for easy servicing.

    • Controllers allow ease of access and ease of  use.


      General Features

    • High-quality, easy-to-replace components with a long service life

    • Next gen screw block and motor

    • Electronic control

    • Integrated dryer and heat recovery option

    • Fully synthetic oil option suitable for food production

    hsc-series

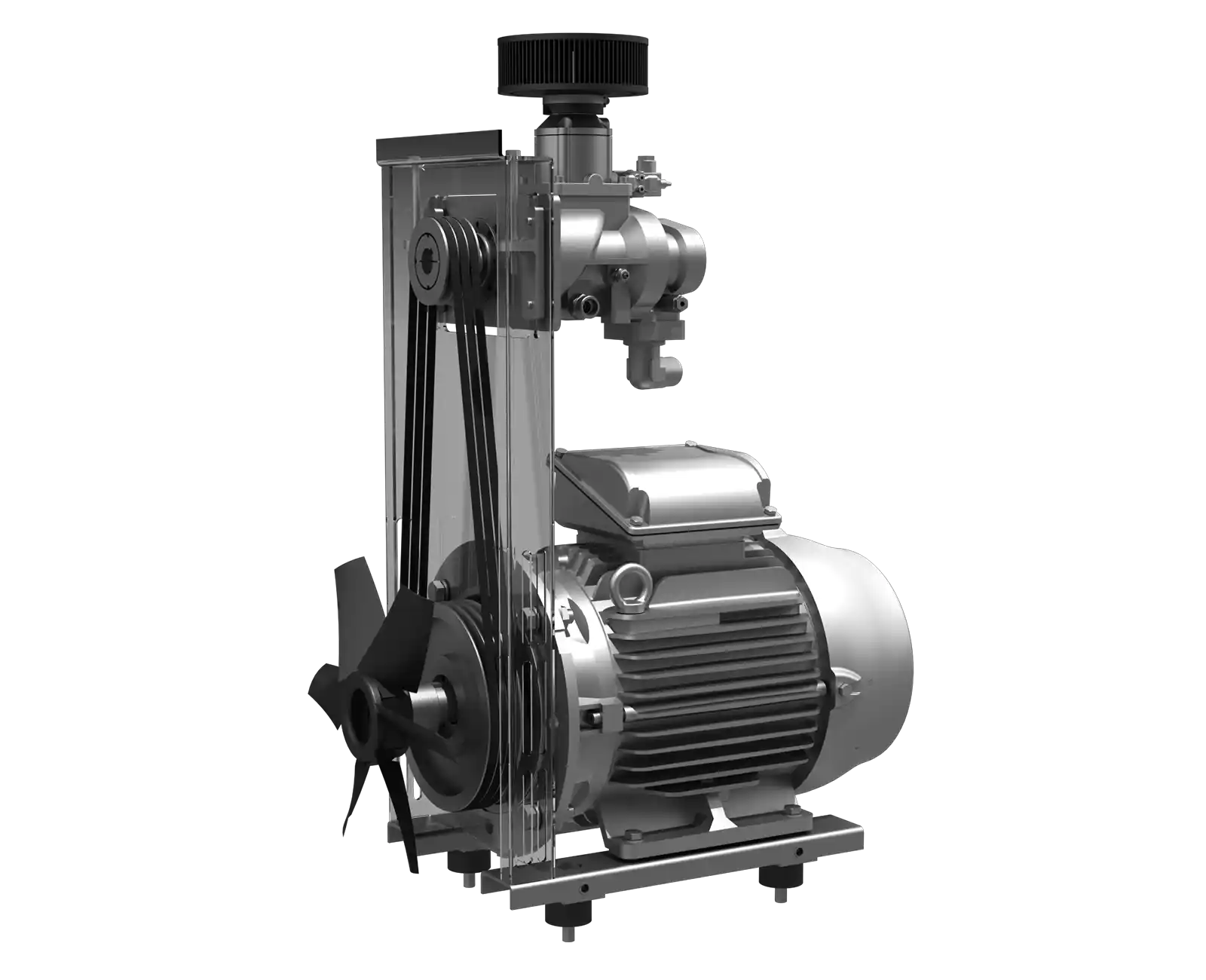

     Main Motor and Drive System

    • IE3 efficiency-class electric motor

    • Star/delta motor starter

    • Belt-pulley drive system

    • Easy-to-use belt tensioner and pulley bushing for easy servicing, removal, and installation.

    • Soft start option


     Screw Block

    • Durable, patented screw block specially selected based on the capacity needs of each model provides high-capacity air

    • New rotor profiles for reduced loss air production and lower torque requirements

    • Next gen bearing design for improved load bearing capabilities

     Controller

    • Can run 2 compressors without the need for an external master controller M/S (Master/Slave- equal ageing)

    • Automatic motor bearing lubrication system prolongs the service life of motor bearings

    • Weekly scheduler for starting/ stopping the machine at 3 different time intervals can be individually set for each day of the week

    • Built-in ModBus communication

    • User-friendly display interface

    • Built-in phase protection relay

    • Alarm History records last 20 alarms

    • Maintenance warnings and history

     45-160 kW   7,5-10-13 bar  5,4-27,4 m³/min

    TECHNICAL  SPECIFICATIONS

    Model Pressure Capacity* Motor Power Connection Size Dimensions (mm) Weight
    bar psi m³/min cfm kW/HP Length Width Height kg
    HSC 45 7,5 110 7,2 254 45/60 G 1 1/4” 1605 1030 1755 878
    10 145 6,4 226
    13 190 5,4 191
    HSC 55 7,5 110 9,6 339 55/75 G 1 1/2” 2065 1200 1810 1371
    10 145 8,5 300
    13 190 6,6 233
    HSC 75 7,5 110 12,4 438 75/100 G 1 1/2” 2065 1200 1810 1408
    10 145 10,5 371
    13 190 8,7 307
    HSC 90 7,5 110 15,8 558 90/125 G 2” 2525 1440 2040 2240
    10 145 13,5 477
    13 190 11 388
    HSC 110 7,5 110 18,8 664 110/150 G 2” 2525 1440 2040 2500
    10 145 16,5 583
    13 190 14 495
    HSC 132 7,5 110 22,8 805 132/180 G 2 1/2” 2500 1805 2000 2873
    10 145 19,5 689
    13 190 16 565
    HSC 160 7,5 110 27,4 968 160/220 G 2 1/2” 2500 1805 2000 3030
    10 145 23 812
    13 190 19,5 689

    - Unit performances measured in reference conditions which are 1 bar absolute air Pressure, %0 relative humidity, 20°C inlet air temperature, 71°C thermostatic valve set temperature and use of Smartoil.
    - Hertz Kompressoren reserves its rights to make changes in its products and specifications without prior notice.
    * Refers to free air delivery measured according to ISO 1217:2009, Annex E standard.
