EAGLE SERIES

EAGLE SERIES


 50-430 HP   100-125-145 psi  131-1723 cfm


Oil-Free, Two-Stage, Direct Coupled, Fixed/Variable Speed

Rotary Screw Air Compressors

We offer more sustainable, Class 0-certified , fully oil-free air solutions for the food, beverage, chemical and electronics industries.

 Advantages

• Produces less filter waste than oil-injected compressors, which reduces your maintenance costs down.

• It can be used safely in sensitive industries such as food and pharmaceutical for the highest hygiene.

• Highly durable performance suitable for working in the harshest operational conditions.

• Models with VSD technology save up to 65% energy and reduce your energy costs.

• Special venturi design prevents rapid pressure fluctuations and high-frequency vibrations.



 General Features

• IE4 efficiency-class electric motors

• Soundproofed canopy

• Electrostatic coated canopy components for high corrosion resistance

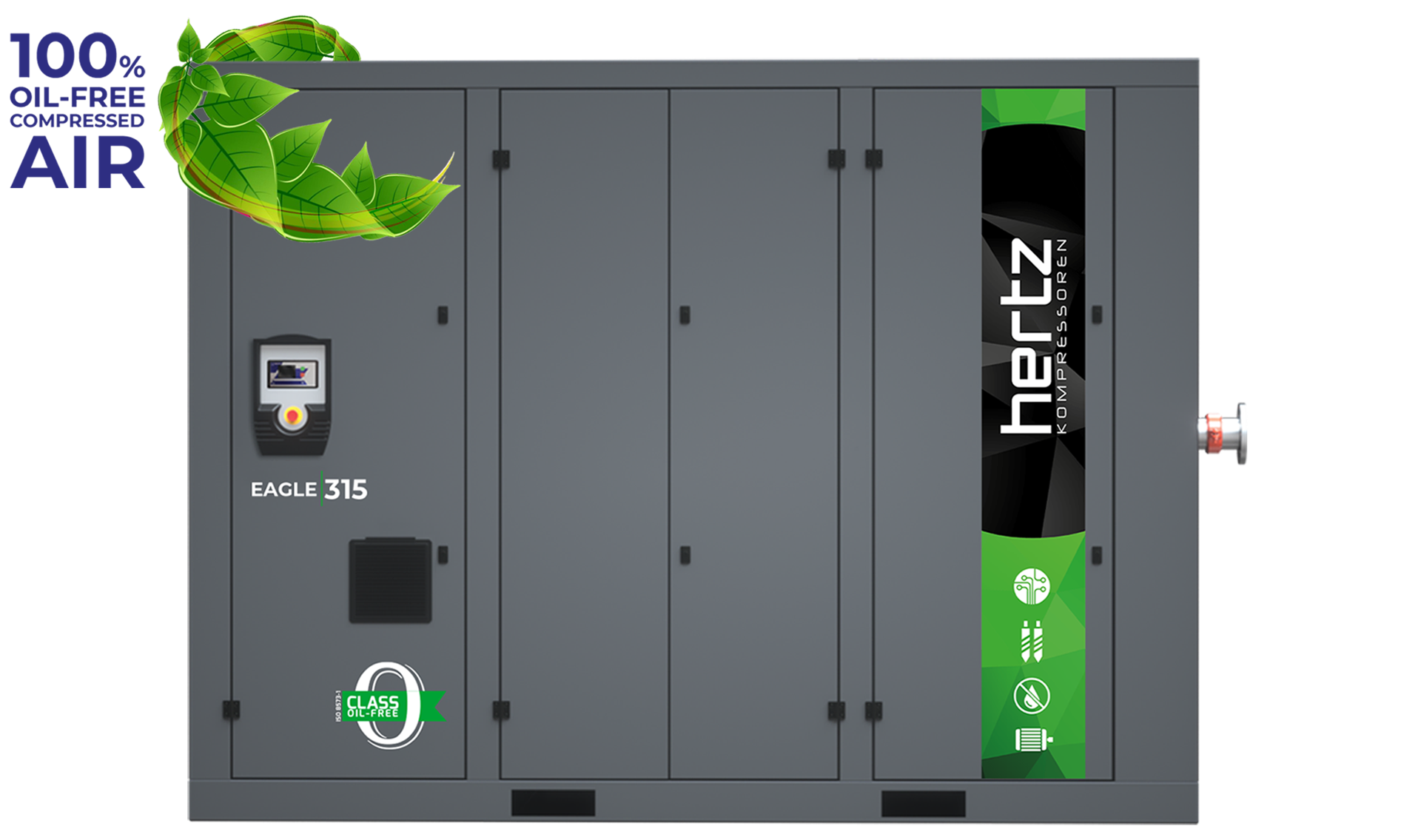

eagle-series

 Screw Block

• Two-stage screw block

• Bearing system developed with the latest technology ensures long life and vibration-free operation

• High level sealing system ensures high performance even during long operation periods

• Synchronizing gears for contact-free power transmission between the rotors

• Specially coated rotors and rotor housing internal parts for minimum gap tolerance and high efficiency

• Stainless steel rotors to eliminate the risk of corrosion and locking, for a long service life

• Ultracoat coating for high temperature resistance

  Cooling System

• Two-stage cooling with pre-cooler system made of stainless steel pipes and fins

• After-cooler with aluminium bar and plate system

• Easy to maintain and clean

• Washable panel filter

• Optimum in-cabinet air circulation to keep the motor and screw block cool


 Intake Regulator

• Easy-to-maintain and reliable valves not affected by pollution and condensation

• Hydraulic intake regulators are more reliable and easier to maintain than pneumatic intake regulators

eagle-series
eagle-series


 100% Oil-Free Compressed Air

• It is designed in accordance with sensitive and accurate production conditions.

• It protects the environment and saves energy.

• It is produced in accordance with all global standards and regulations.

• It prevents damage to your products and the contamination of your production lines.

• Therefore, it eliminates unnecessary machine downtime.

• It guarantees the high quality compressed air you need.

 Controller

• Without the need for an external main controller, ability to work synchronized for up to 5 compressors

• Weekly scheduler for starting / stopping the machine at 3 different time intervals can be individually set for each day of the week

• Dual PID feature on inverter-equipped models can run simultaneous PID for temperature and pressure

• Pressure PID on inverter-equipped models ensures energy-efficient operation by maintaining the pressure at the required level

• Temperature PID on inverter-equipped models controls the fan speed to maintain the screw block’s most efficient operating temperature

• On inverter-equipped models, all inverter and compressor control data are managed from a single point

• Internal ModBus communication

• User-friendly on-screen interface

• Alarm log records the last 20 alarms

• Periodic maintenance warnings and log records

 50-430 HP   100-125-145 psi  131-1723 cfm

TECHNICAL  SPECIFICATIONS


Model Pressure Capacity * Motor Connection Dimensions (in.)
psi bar cfm m³/min HP/kW Length Width Height
EAGLE 37 100 7 219 6,2 50/37 2" NPT 96 63 85
125 8,5 184 5,2
145 10 166 4,7
EAGLE 45 100 7 265 7,5 60/40 2” NPT 96 63 85
125 8,5 230 6,5
145 10 208 5,9
EAGLE 55 100 7 332 9,4 75/55 2” NPT 96 63 85
125 8,5 304 8,6
145 10 265 7,5
EAGLE 75 100 7 449 12,7 100/75 2” NPT 96 63 85
125 8,5 413 11,7
145 10 378 10,7
EAGLE 90 100 7 512 14,5 125/90 2” NPT 96 63 85
125 8,5 512 14,5
145 10 449 12,7
EAGLE 110 100 7 675 19,1 150/110 ANSI 3” 121 72 96
125 8,5 572 16,2
145 10 565 16
EAGLE 132 100 7 809 22,9 180/132 ANSI 3” 121 72 96
125 8,5 766 21,7
145 10 671 19
EAGLE 160 100 7 954 27 220/160 ANSI 3” 121 72 96
125 8,5 897 25,5
145 10 837 23,8
EAGLE 185 100 7 1024 29 250/185 ANSI 3” 121 72 96
125 8,5 1021 28,8
145 10 943 26,7
EAGLE 200 100 7 1222 34,5 270/200 ANSI 4” 145 84 127
125 8,5 1137 32,2
145 10 1024 29
EAGLE 250 100 7 1533 43,4 340/250 ANSI 4” 145 84 127
125 8,5 1448 41
145 10 1219 34,5
EAGLE 315 100 7 1717 48,6 430/315 ANSI 4” 145 84 127
125 8,5 1713 48,5
145 10 1526 43,2

- Unit performances measured in reference conditions which are 1 bar absolute air pressure, 0% relative humidity, 20°C inlet air temperature, 71°C thermostatic valve set temperature and use of Smartoil.
- Hertz reserves its rights to make changes in its products and specifications without prior notice.
* Refers to free air delivery measured according to ISO 1217:2009, Annex C standard.

TECHNICAL  SPECIFICATIONS (VSD)


Model Pressure Capacity* Motor  Connection Size Dimensions (mm)
(Air Cooled / Water Cooled
bar psi Minimum Maximum kW/HP Length Width Height
m³/min - cfm m³/min - cfm
EAGLE 55 VSD 7 100 3,8 134 9,1 321 55/75 G 2" 2588/2593 1640 2160
8,5 125 3,7 131 8,3 293
10 145 3,7 131 7,5 265
EAGLE 75 VSD 7 100 6,2 219 12,8 452 75/100 G 2" 2588/2593 1640 2160
8,5 125 6,2 219 11,9 420
10 145 6,2 219 11 389
EAGLE 90 VSD 7 100 6,2 219 14,6 516 90/125 G 2" 2588/2593 1640 2160
8,5 125 6,2 219 14,2 501
10 145 6,2 219 13,2 466
EAGLE 110 VSD 7 100 10,4 367 20,4 720 110/150 DN 80 3197 1840 2450/2200
8,5 125 10,3 364 18,5 653
10 145 10,3 364 17,4 614
EAGLE 132 VSD 7 100 10,4 367 22,2 784 132/180 DN 80 3197 1840 2450/2200
8,5 125 10,4 367 21 742
10 145 10,3 364 19,6 692
EAGLE 160 VSD 7 100 10,7 378 26,9 950 160/220 DN 80 3197 1840 2450/2200
8,5 125 10,6 374 25,5 901
10 145 10,6 374 23,5 830
EAGLE 185 VSD 7 100 14 494 29,6 1045 185/250 DN 80 3197 1840 2450/2200
8,5 125 14 494 29,5 1042
10 145 13,9 491 27,7 978
EAGLE 200 VSD 7 100 17,4 614 36,2 1278 200/270 DN 100 3797/3540 2140 2715/2450
8,5 125 17,3 611 33,3 1176
10 145 17,2 607 30,4 1074
EAGLE 250 VSD 7 100 18,9 667 44,6 1575 250/340 DN 100 3797/3540 2140 2715/2450
8,5 125 18,8 664 41,3 1458
10 145 18,7 660 38,2 1349
EAGLE 315 VSD 7 100 22,9 809 48,8 1723 315/430 DN 100 3797/3540 2140 2715/2450
8,5 125 22,9 809 46,6 1646
10 145 22,9 809 46,3 1635

- Unit performances measured in reference conditions which are 1 bar absolute air pressure, 0% relative humidity, 20°C inlet air temperature, 71°C thermostatic valve set temperature and use of Smartoil.
- Hertz reserves its rights to make changes in its products and specifications without prior notice.
* Refers to free air delivery measured according to ISO 1217:2009, Annex E standard.
