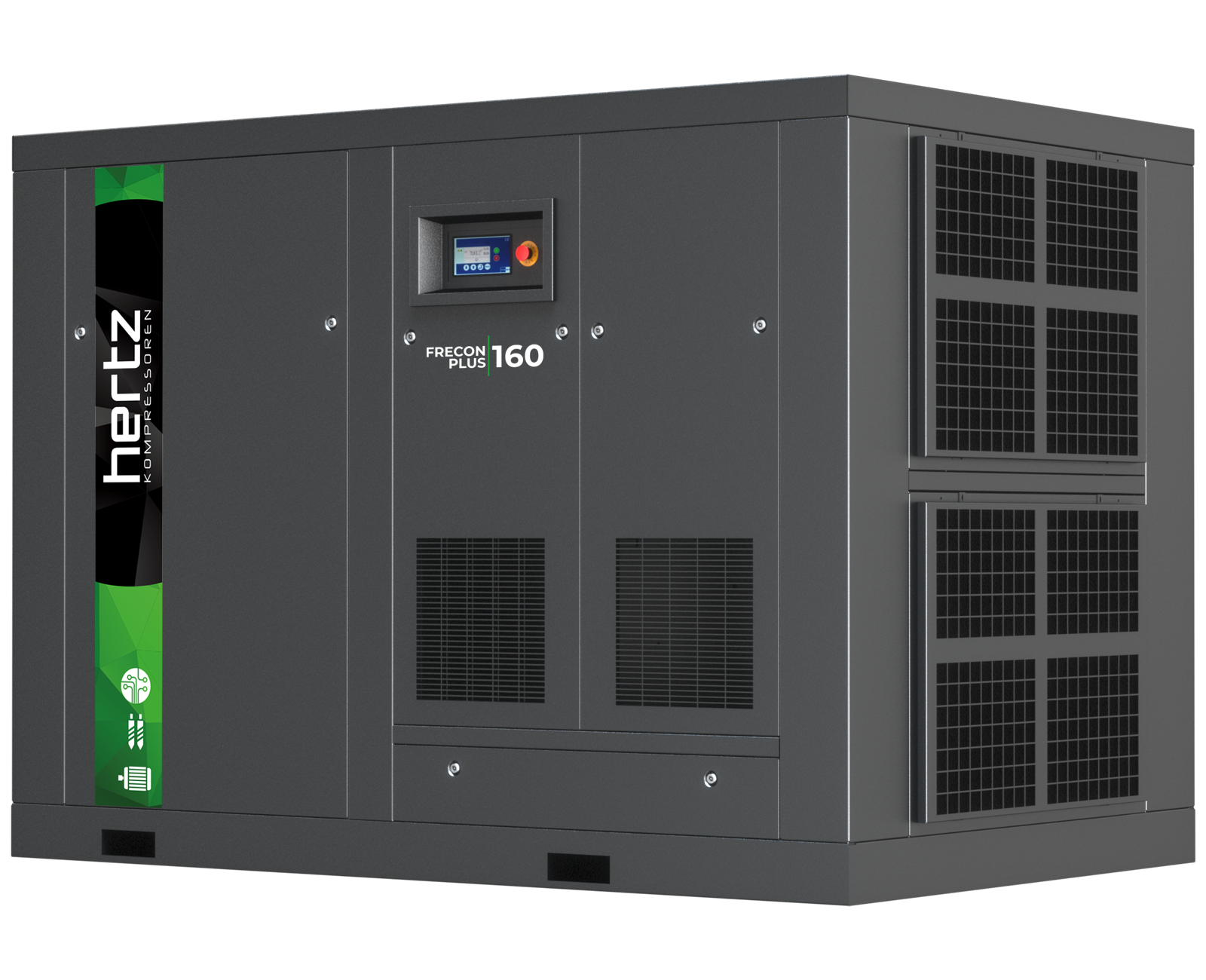

    FRECON PLUS SERIES

    IMPETUS SERIES
    FRECON PLUS SERIES
    HSC SERIES
    HSC-D SERIES
    HGS-HSC SERIES [NEW]
    FRECON PLUS ᵖᵐ SERIES [NEW]

     90-315 kW   7,5-10-13 bar  6-54,10 m³/min


    Oil Injected, Direct Coupled, Variable Speed

    Rotary Screw Air Compressors

    Thanks to its high quality equipment and advanced engineering design, it provides an efficient and flexible use according to your industrial production needs.

     Advantages

    • Up to 65% energy saving*

    • Operation at constant output pressure value

    • Wide operating pressure range (5-14 bar)**

    • Long component life cycle thanks to soft start

    • Protection against the adverse effects of peak currents

    • Effective and energy efficient compressed air production even in case of highly variable compressed air requirements

    *When compared with compressors without an inverter for applications with variable requirements

    ** If requested, it is produced specially according to the need.

    frecon-plus-series


     Main Motor and Drive System

    • IE3 efficiency-class electric motor

    • Direct coupled (1:1) with the elastic coupling

    • Elasting coupling for a maintenance free long-lasting and efficient power transmission system

    • Variable-speed starting with frequency converter

    • High temperature protection for motor bearings


     Screw Block

    • A durable and specially selected patented screw block that provides high capacity air according to the capacity needs of each model

    • New rotor profiles for reduced loss air production

    • Next gen bearing design for improved load bearing capabilities


      Cooling System

    • Optimum working temperature thanks to inverter controlled fans, provides additional energy efficiency

    frecon-plus-series

     Controller

    • Internal ModBus communication

    • User-friendly on-screen interface

    • Multi-operation capability of up to 5 compressors

    • The ability to perform both pressure and temperature PID at the same time with its Dual PID feature

     90-315 kW   7,5-10-13 bar  6-54,10 m³/min

    TECHNICAL  SPECIFICATIONS

    Model Pressure Capacity* Motor Power Connection Size Dimensions Weight
    [Length x Width x Height] (mm) kg
    bar psi Minimum m³/min - cfm Maximum m³/min - cfm kW/HP Base Mounted Tank Mounted Compact Base Mounted Tank Mounted Compact
    FRECON 90 PLUS  7,5 110 6,2 219 16,8 593 90/125 G 2” 2525 x 1440 x 2037 - - 2020 - -
    10 145 6 212 14,4 509
    13 190 6,2 219 12,3 434
    FRECON 110 PLUS 7,5 110 6,6 233 20,1 710 110/150 G 2”  2525 x 1440 x 2037 - - 2380 - -
    10 145 7,1 250 17,3 611
    13 190 7 247 15 530
    FRECON 132 PLUS 7,5 110 6,9 244 24,3 858 132/180 G 2 1/2” 2775 x 1820 x 2000 - - 2555 - -
    10 145 6,8 240 20,3 717
    13 190 9,7 343 18,1 639
    FRECON 160 PLUS 7,5 110 6,8 240 28,2 996 160/220 G 2 1/2” 2775 x 1820 x 2000 - - 2760 - -
    10 145 7,1 251 24,6 869
    13 190 8,5 300 21,7 766
    FRECON 200 PLUS 7,5 110 14 494 37,5 1324 200/270 DN 80 3290 x 2285 x 2455 - - 4460 - -
    10 145 13,9 491 32,3 1141
    13 190 13,8 487 28,8 1017
    FRECON 250 PLUS 7,5 110 13,6 480 45,2 1596 250/340 DN 100 3315 x 2285 x 2455 - - 5600 - -
    10 145 13,5 477 38,5 1360
    13 190 13,5 477 33,5 1183
    FRECON 315 PLUS 7,5 110 13,2 466 54,1 1911 315/430 DN 100 3315 x 2285 x 2455 - - 6000 - -
    10 145 13,2 466 44,3 1564
    13 190 12,9 456 38 1342

    - Unit performances measured in reference conditions which are 1 bar absolute air Pressure, %0 relative humidity, 20°C inlet air temperature, 71°C thermostatic valve set temperature and use of Smartoil.
    - Hertz Kompressoren reserves its rights to make changes in its products and specifications without prior notice.
    * Refers to free air delivery measured according to ISO 1217:2009, Annex E standard.
