Flexible Compressor Room
SmartBOX is a turnkey solution that meets the needs of modern production facilities with its variable design and superior performance features.
Available in 10, 20, and 40-foot container options, this system saves space thanks to its optimized footprint. Designed to withstand harsh weather conditions, it offers energy efficiency and easy maintenance. Fully equipped with a compressor, filter, dryer, and tank, it is ready for operation.
Customisable with stainless steel or aluminium installation, VSD technology equipment and optional special features, SmartBOX complies with both safety and environmental sustainability standards. It offers maximum efficiency and uninterrupted production for businesses.
is a Flexible Compressor Room Advantageous?
A flexible compressor room offers flexible designs that adapt to different production needs. Its optimized footprint saves space, while turnkey project management ensures fast and seamless installation.
Energy efficiency is achieved through VSD-equipped oil-injected and oil-free compressor options. The leak-proof piping system provides full durability against environmental conditions. These systems come ready for immediate operation and include safety features such as easy maintenance access and doors that can be opened from the inside.
They ensure continuous operation even in harsh weather conditions, providing a sustainable and secure working environment.
are the Features of Flexible Compressor Room?

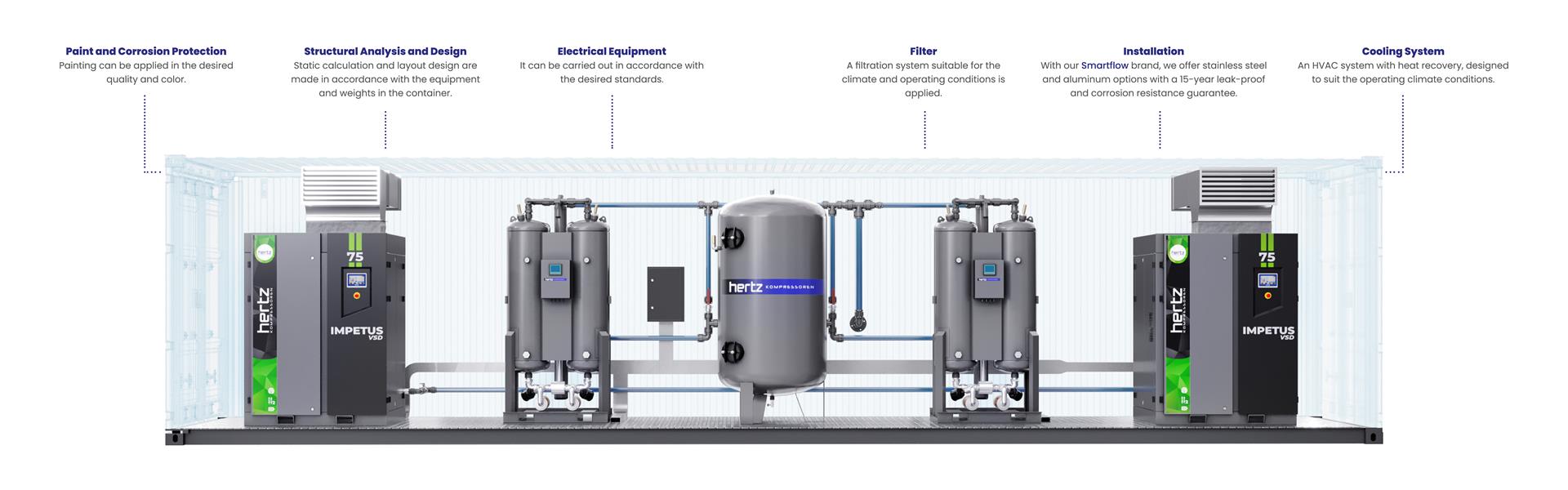

Hertz Kompressoren offers containerized solutions in 10, 20, and 40-foot options to meet the needs of businesses of all sizes. The systems are designed to operate safely within a temperature range of 0–45°C and can optionally be adapted for extreme conditions from –50°C to +50°C. High-quality compressors, filters, dryers, and wet/dry air tanks are fully integrated within the container, providing a compact and complete compressed air solution.
The air distribution system, built with stainless steel or aluminum SmartFlow piping, enhances both durability and efficiency. Interior lighting, ventilation, and climate control systems contribute to a comfortable and controlled working environment. A single-entry main power distribution panel allows for quick and easy installation. Additionally, the system can be optionally configured to include nitrogen and oxygen generation alongside compressed air.
are the Flexible Compressor Room Options?
• Custom paint
• Additional service doors
• Modbus/Ethernet communication interface
• Gas detection system
• Emergency warning light
• Fire detection and suppression system
• FAT monitoring
• Container sound and thermal insulation
• Harsh environment kit (operating range: -50°C to +50°C)
• Flooring with aluminum or galvanized checkered plate
• CSS and DNV certification for the container
• Cyclone filtration for dusty environments
• Flow meter for demand analysis
• Power meter for online energy monitoring
• EQ control unit with remote monitoring capability
• Custom labeling for client-specific requirements
• Filtration options compliant with ISO 8573 air quality standard
• Dryer and tank bypass system
• System status indicator light
• Emergency light and emergency stop button
Flexible Compressor Room
Meet SmartBOX and redefine the limits of your business!
